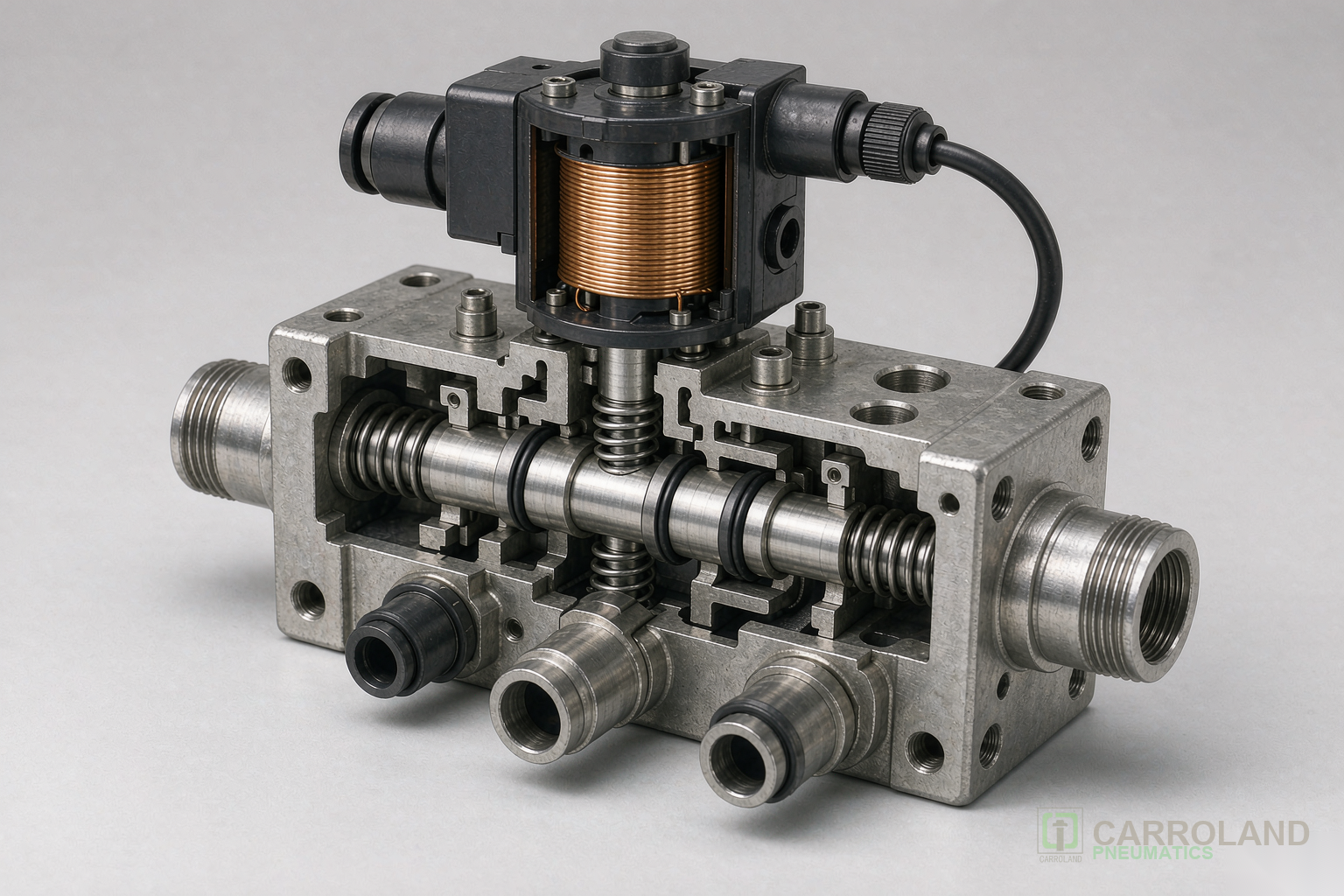

Pneumatic Valve & Solenoid Guide: 5/2, 5/3, Valve Islands & Fieldbus
A pneumatic valve is the brain of any actuator circuit—it routes compressed air to extend or retract a cylinder, lock a clamp, or sequence a station. This guide covers directional control logic, solenoid vs pilot actuation, valve islands, and how to choose between IO-Link and EtherCAT for smart lines.
Directional Control Basics: The 4 Numbers
The ISO 5599 numbering tells you everything: ports × positions. The most common:
- 3/2: three ports, two positions—on/off, single-acting cylinders, purge.
- 5/2: five ports, two positions—the workhorse for double-acting cylinders (extend/retract).
- 5/3: five ports, three positions—adds a centre (locked, float, or pressure-centre) for hold applications.
Solenoid vs Pneumatic Pilot Actuation
| Actuation | Pros | Cons | Use When |
|---|---|---|---|
| Solenoid (single/double) | Fast, PLC-controllable, no pilot air | Heat, power draw on large bores | Most automation, small–mid bore |
| Pneumatic pilot | No electrical hazard, robust | Needs pilot supply, slower | Explosive/ATEX zones |
| Manual / mechanical | Simple, cheap | No remote control | Test benches, overrides |
Valve Islands & Manifolds
Instead of loose valves with barbed tubing, a valve island stacks valves on a common air rail with one electrical connector. Benefits: fewer leak points, faster commissioning, centralized diagnostics. For hazardous areas, look for ATEX/IECEx certified solenoid coils.
IO-Link vs EtherCAT for Valve Manifolds
Smart lines need feedback. The two dominant fieldbus choices:
| Bus | Topology | Strengths | Best Fit |
|---|---|---|---|
| IO-Link | Point-to-point, 20 m | Cheap, sensor/valve parity, easy retrofit | Mixed small cells, retrofit |
| EtherCAT | Ring/line, deterministic | Hard real-time, hundreds of nodes | High-speed synchronized lines |
Our IO-Link vs EtherCAT selection guide gives a decision matrix with cycle-time math for 2026 deployments.
Sizing Flow & Response Time
Match the valve’s CV (flow coefficient) to the cylinder volume and target cycle rate. A valve too small starves the actuator; too large wastes air and cost. Rule of thumb: total actuation time = fill time + valve shift time + cushioning. For cycles under 200 ms, prioritize low-shift-time solenoid islands.
Common Failure Modes
- Coil burnout from 100% duty at high ambient—specify 100% ED coils.
- Spool sticking from dry, dirty air—fix at the FRL, not the valve.
- Leakage from worn seals after millions of shifts—plan replacement intervals.
Air Quality Depends on Upstream Preparation
No valve lasts without clean, dry air. Pair every island with a properly sized FRL (see our FRL air preparation guide) rated to ISO 8573-1 Class 3.1.2 or better for electronics lines.
Related Guides
- IO-Link vs EtherCAT for Valve Manifolds
- FRL Air Preparation Guide
- Pneumatic Cylinder Selection Guide
- How a Solenoid Valve Works
- Direct-Acting Solenoid Valves
- Normally Closed Solenoid Valves
- Pneumatic Circuit Design for Automated Production Lines
Frequently Asked Questions
What is the difference between a 5/2 and 5/3 valve?
A 5/2 valve has two positions (extend / retract) and is the standard for double-acting cylinders. A 5/3 adds a centre position—locked, float, or pressure-centred—used when you must hold or release a load mid-stroke.
When should I use a solenoid vs pneumatic pilot valve?
Use solenoid actuation for PLC-controlled automation on small-to-mid bores. Use pneumatic pilot (or manual) actuation in explosive or ATEX-rated environments where electrical sparking must be avoided.
IO-Link or EtherCAT for a valve island?
Choose IO-Link for cost-sensitive retrofits and mixed small cells (20 m point-to-point). Choose EtherCAT when you need deterministic, hard-real-time control across hundreds of nodes on a high-speed synchronized line.
Why does my solenoid coil keep burning out?
Usually 100% duty at high ambient temperature, or a stuck spool. Specify 100% ED-rated coils and verify the spool moves freely; persistent burnout points to upstream air quality issues addressed at the FRL.
{
