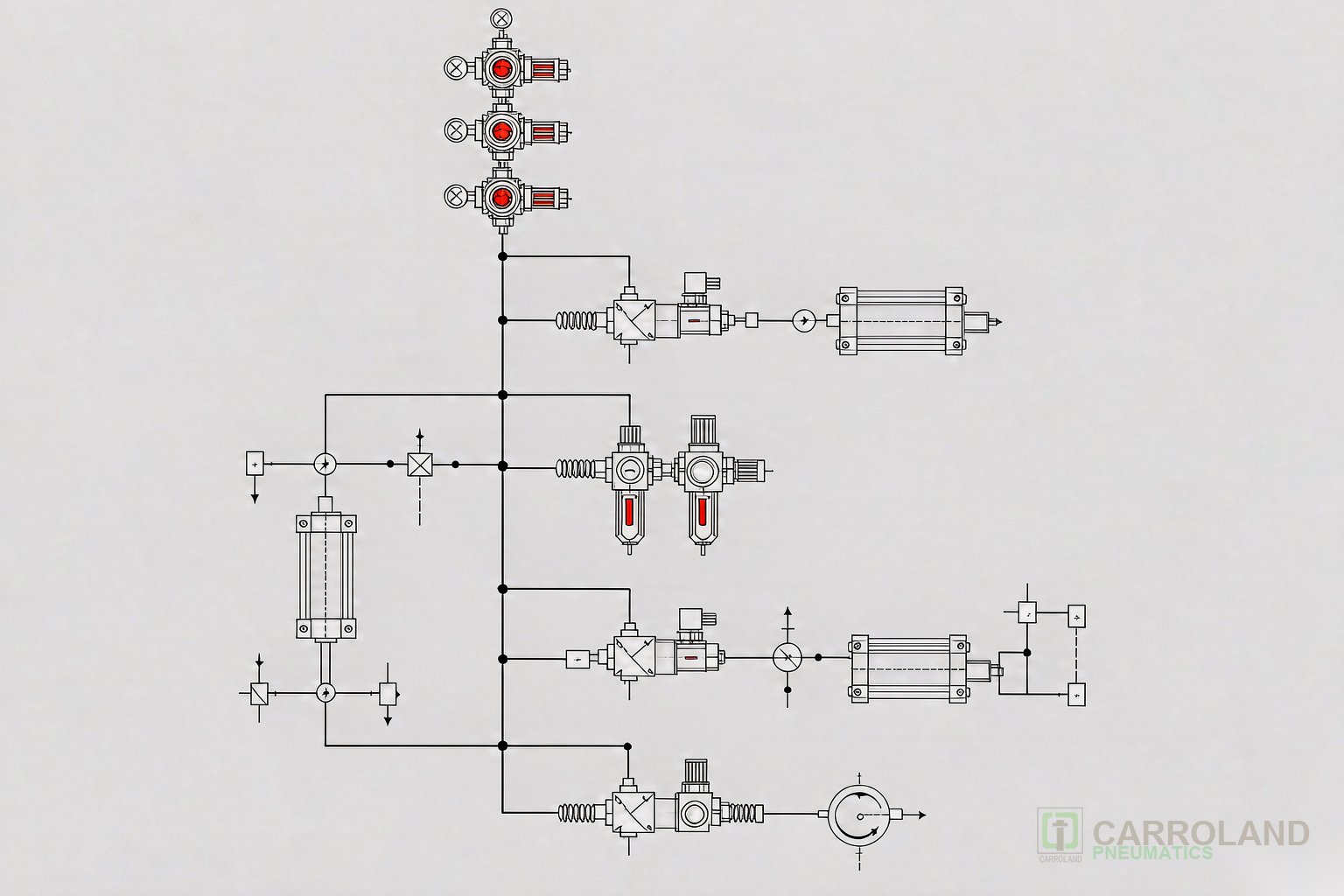

Pneumatic Circuit Design for Automated Production Lines: A Practical Engineering Guide
A well-planned pneumatic circuit keeps automated production lines fast, repeatable, and safe. Engineers use compressed air to clamp, position, eject, and transport parts. For example, automotive, electronics, packaging, and food-processing plants all rely on pneumatic motion. When the circuit design is wrong, actuators move slowly, valves overheat, and energy bills rise. This guide explains how to size, arrange, and protect a pneumatic circuit for factory automation.
What a Pneumatic Circuit Does
A pneumatic circuit is the complete path that compressed air follows from the compressor outlet to the actuator and back to the atmosphere. It includes the air preparation unit, directional control valves, flow regulators, tubing, fittings, cylinders, rotary actuators, and safety relief devices. Unlike a hydraulic circuit, a pneumatic circuit uses air at relatively low pressure. Typical supply pressure ranges from 4 to 10 bar, and rapid cycling depends on fast exhaust.
Modern automated lines demand more than simple on/off motion. They need sequencing, interlocking, speed control, and fault detection. A single production cell may contain ten to thirty actuators. Each actuator has its own valve and sensor feedback loop. Therefore, the circuit must balance performance, energy use, and maintainability from the design stage.
Main Components in a Production Line Pneumatic Circuit
Every reliable circuit starts with the same four building blocks. Skipping or undersizing any of them creates problems later.
| Component | Function | Typical Specification |
|---|---|---|
| Air preparation unit (FRL) | Filters, regulates, and lubricates supply air | 40 ฮผm filter, 0.5โ10 bar regulator, optional lubricator |
| Directional control valve | Routes air to extend or retract an actuator | 5/2-way, G1/8 to G1/2 ports, 24 VDC solenoid valve |
| Flow control valve | Limits exhaust or supply flow to adjust speed | Needle or restrictor-check, bidirectional or unidirectional |
| Actuator | Converts air pressure into linear or rotary motion | ISO 15552 cylinder, ISO 6432 mini cylinder, or rotary actuator |
The air preparation unit is the most overlooked part of a pneumatic circuit. For instance, a 40 ฮผm filter removes particulates that would otherwise scratch valve spools and cylinder seals. The regulator holds downstream pressure within ยฑ0.1 bar. Consequently, force variations that cause mis-picks or inconsistent clamping stay small.
How to Design a Reliable Pneumatic Circuit
Design begins with the process, not the catalog. First, list every motion, its required force, stroke, cycle time, and duty cycle. Then group actuators by motion phase and assign one directional control valve per actuator. Parallel motions share the same supply line. In contrast, sequential motions need interlocks or a programmable valve manifold.
Safety-related circuits must follow ISO 13849-1:2023 and the draft ISO/DIS 13849-2. The draft entered enquiry phase in February 2026 and was published in May 2026. These standards define performance levels (PL a to PL e) for safety-related control systems, including pneumatic parts. As a result, a dual-channel pneumatic safety circuit with monitored exhaust can reach PL d or PL e, depending on diagnostic coverage and component reliability.
Engineers should also prepare for ISO/AWI 25168. ISO/TC 131/SC 9 registered this new work item in April 2026. It addresses energy efficiency in pneumatic power transmission circuits. The standard will give calculation methods for assessing compressed-air distribution losses. Therefore, designers can reduce leakage and pressure drop before the line enters production.
Sizing Pneumatic Control Valves
Valve sizing determines whether an actuator reaches full speed within the required cycle time. The key metric is flow capacity, expressed as Cv in North America or Kv in metric markets. Cv is the volume of water in U.S. gallons per minute that flows through a fully open valve with a 1 psi pressure drop. Kv is the water flow in cubic meters per hour with a 1 bar pressure drop. ISO 6358-1:2013 adds sonic conductance C and critical pressure ratio b for compressible air.
For subsonic air flow, engineers can estimate the required Cv with this relationship:
Cv = Q / (22.67 ร P1 ร sqrt(1 โ (ฮP/P1)ยฒ))
where Q is flow rate in standard cubic feet per minute, P1 is inlet pressure in psia, and ฮP is the allowable pressure drop in psi. Select a valve whose published Cv is 20% to 40% higher than the calculated value. An undersized valve starves the actuator. Conversely, an oversized valve causes jerky motion and wastes compressed air.
Pressure drop across the valve should stay below 10% of supply pressure in normal operation. Higher drops create heat, noise, and inconsistent actuator force. When several valves share a common supply header, size the header for the simultaneous peak flow of all actuators. Do not size it for the sum of every possible stroke.
NC Solenoid Valves for Safety and Sequencing
A normally closed (NC) solenoid valve blocks flow when the coil is de-energized. This fail-safe behavior matters in applications where an unexpected actuator movement could damage tooling or injure an operator. When power is applied, the solenoid coil generates a magnetic field. That field lifts the plunger against a spring. When power cuts, the spring returns the plunger to the seat and stops the air supply.
NC solenoid valves suit emergency-stop circuits, clamping sequences, and guard-locking systems. Direct-acting NC valves open without relying on line pressure. Therefore, they work at low pressures or with vacuum. Pilot-operated NC valves use supply pressure to assist opening and handle larger flows. However, they need a minimum operating pressure differential to function.
Response time is another selection factor. Small direct-acting valves switch in 5 to 15 milliseconds. Pilot-operated valves for large cylinders may take 20 to 50 milliseconds. The delay occurs because the pilot air must move a piston before the main port opens. For high-speed indexing or pick-and-place, verify that the total valve-plus-actuator response time fits within the machine cycle budget.
Applications on Automated Production Lines
Pneumatic circuits appear in almost every automated production environment. The exact layout changes, but the design rules stay the same.
3C electronics assembly. Compact ISO 6432 cylinders and low-profile grippers mount inside small fixtures. Clean, dry air prevents contamination of screens and circuit boards. Fast valve response keeps takt times below one second per station. Carroland supplies clamping solutions for 3C automation lines, including components used by Foxconn-certified suppliers for iPhone production lines.
Automotive welding and pressing. Large-bore ISO 15552 cylinders deliver clamping forces from 500 N to over 30 kN. Welding spatter and weld slag demand metal scrapers and protective bellows on cylinder rods. Parallel gripper circuits often include pressure sensors to confirm part presence before welding begins.
Food and packaging. Stainless steel valves and FDA-compliant seals handle washdown cycles and temperature swings. Air preparation units with coalescing filters remove oil vapor that could contact product surfaces. Soft-start circuits prevent sudden actuator movements that might damage fragile packages.
Energy Efficiency and Smart Monitoring
Compressed-air systems consume 10% to 30% of industrial electricity in many factories. Leaks, artificial demand, and oversized components waste a significant share of that energy. Therefore, a modern pneumatic circuit should include flow sensors, pressure transmitters, and leak-detection routines from the start.
Smart pneumatic components with IO-Link or Ethernet/IP interfaces report cycle count, temperature, and end-of-travel status to the PLC. Predictive maintenance algorithms use this data to schedule seal replacement before unplanned downtime occurs. According to industry estimates, the Asia-Pacific region accounts for more than 55% of smart-pneumatics revenue. This share is driven by electronics assembly and automotive investments in China, India, and Southeast Asia.
Designers can cut energy use by reducing supply pressure where possible. They can also use regulators with independent pressure zones and add quick-exhaust valves near actuators. Every 0.5 bar reduction in system pressure saves approximately 3% to 5% of compressor energy. Lower pressure also extends seal life because cylinders operate closer to their intended design envelope.
Frequently Asked Questions
What is the difference between a pneumatic circuit and a pneumatic system?
A pneumatic system includes the compressor, distribution piping, dryers, and all end-use equipment. A pneumatic circuit is the local network that serves one actuator group or machine station, from the FRL outlet to the actuator exhaust.
How do I prevent water from entering a pneumatic circuit?
Install a refrigerated air dryer upstream of the distribution line and a water separator plus 40 ฮผm filter at the machine FRL. Drain condensate daily, and route vertical drops with drain legs at the bottom.
Why does my actuator move slowly even though the valve is large?
Check the actual pressure drop across the valve and the length and inside diameter of the tubing. Long, small-bore hoses create more restriction than the valve itself. Move the valve closer to the actuator or increase tubing diameter.
When should I choose an NC solenoid valve over an NO valve?
Select an NC solenoid valve when the safe default state is no flow, such as clamp release, guard locking, or emergency stop circuits. Choose an NO valve when the actuator must stay extended or pressurized when power is lost.
{
