Pneumatic Clamping Units for 3C automation fixture systems.

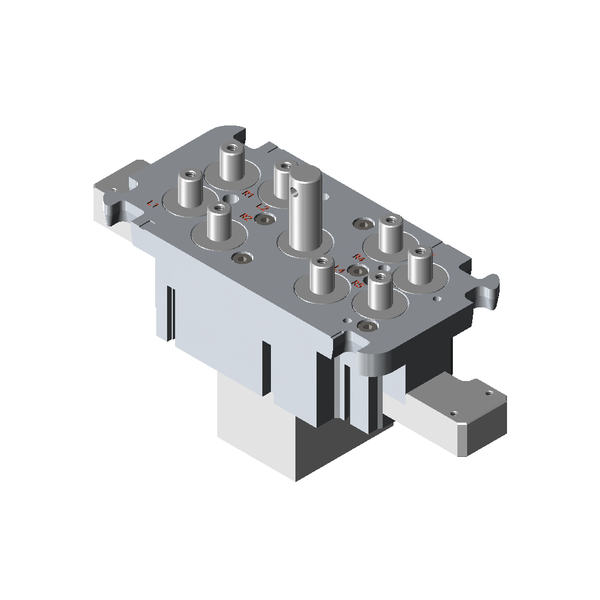

The 9XC3-MOD-A-S (B) Clamping Unit is a high-precision pneumatic fixture core module engineered by Carroland for iPhone assembly production lines. It is a multi-cylinder assembly that forms the key sub-system of a complete fixture, configured to the specific demands of a Mod A production line. Mod A is a mature, field-proven configuration widely used across […]
| Bore Diameter | 8-φ20 mm |
| Stroke | 5±0.5 mm |
| Shaft Diameter | φ9 mm |
| Operation Mode | Single-acting |
| Working Medium | Air |
| Operating Pressure Range | 0.2–0.7 MPa |
| Operating Temperature Range | 0–60℃ |
From a single component to a full fixture system — send your drawing or line spec. Our Foxconn-certified engineers respond with sizing, lead time and a quote, typically within one business day.
