Compact Cylinders for 3C automation fixture systems.

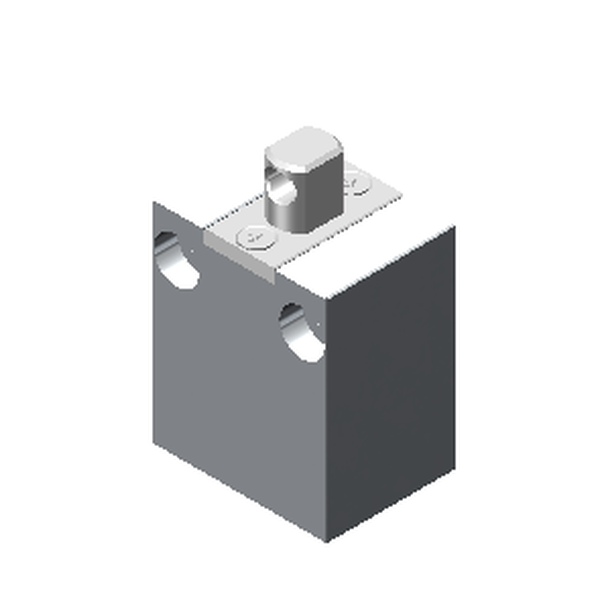

The ZD16-8 Compact Cylinder is an ultra-thin pneumatic actuator built around a 16 mm bore and an 8 mm short stroke, developed by Carroland for the tight envelope of iPhone assembly and consumer-electronics production lines. As a member of the ZD thin-cylinder family, it delivers dependable linear actuation where installation depth is at a premium. […]
| Bore Diameter | ฯ16 |
| Stroke | 8 mm |
| Shaft Diameter | ฯ8 |
| Operation Mode | Reciprocating Type |
| Working Medium | Air |
| Operating Pressure Range | 0.2โ0.7 MPa |
| Operating Temperature Range | 0โ60โ |
| Magnetic Ring Assembly | No |
From a single component to a full fixture system โ send your drawing or line spec. Our Foxconn-certified engineers respond with sizing, lead time and a quote, typically within one business day.
