IO-Link vs EtherCAT for Solenoid Valve Manifolds: 2026 Selection Guide

Selecting the right communication protocol for solenoid valve IO-Link EtherCAT architectures has become a critical design decision for automation engineers building smart factory production lines. Two protocols dominate the modern valve island landscape: IO-Link (IEC 61131-9) at the device level and EtherCAT at the machine control level. While they serve different layers of the automation pyramid, their roles increasingly overlap at the valve manifold — where pneumatic actuation meets digital intelligence. This article delivers a data-driven comparison to help OEMs and system integrators choose the right protocol architecture for 3C electronics assembly, automotive manufacturing, and general industrial automation.

The Evolution of Valve Manifold Communication

A decade ago, solenoid valve manifolds relied on multipole connectors — bundles of discrete wires running from each valve coil back to the PLC I/O card. A 20-station manifold required 40+ wires, complex cable harnesses, and hours of point-to-point troubleshooting. The shift to fieldbus and industrial Ethernet changed everything: a single cable now connects an entire manifold to the controller, carrying both control signals and diagnostic data. For a comprehensive overview of solenoid valve types and application scenarios, refer to our solenoid valve application guide for automated production lines.

By 2025, the global valve islands market reached USD 4,160.87 million, with Fieldbus and Industrial Ethernet commanding 51.5% of revenue (USD 2,141.47M) and IO-Link capturing 32.4% (USD 1,347.41M), according to pmarketresearch.com worldwide valve islands market data. Multipole connection — the legacy approach — has shrunk to just 16.2%. This shift reflects a fundamental trend: pneumatic solenoid valve systems are no longer just actuators; they are data-generating nodes in the IIoT architecture.

Understanding IO-Link: The Device-Level Standard

IO-Link is the first globally standardized I/O technology for point-to-point communication between sensors, actuators, and controllers, defined under IEC 61131-9:2022 (Ed. 2.0). Unlike fieldbus protocols that handle network-level communication, IO-Link operates at the last meter — the link between an IO-Link master and individual field devices.

Key Technical Specifications

IO-Link on Valve Manifolds: What It Enables

When a solenoid valve manifold integrates an IO-Link interface, each valve station becomes individually addressable. The master can read valve cycle counts, coil temperature, switching timestamps, and short-circuit status — data previously invisible to the PLC. For a factory running 200+ valve stations across a 3C assembly line, this means:

• Predictive maintenance: Track actuation cycles per valve; flag units approaching rated lifetime before failure disrupts production.
• Automatic parameter restoration: Replace a failed valve module, and the IO-Link master automatically pushes the stored configuration — no manual setup, no laptop, no specialized technician.
• Energy monitoring: Monitor coil power consumption per station; identify valves that draw excessive current due to mechanical binding or contamination.
• Simplified wiring: A single M12 cable replaces 20+ discrete wires, reducing cabinet space and installation time by an estimated 60-70%.

Understanding EtherCAT: The Machine-Level Powerhouse

EtherCAT (Ethernet for Control Automation Technology) is a high-performance industrial Ethernet protocol that processes data “on the fly” — each slave node reads and writes its data within a single passing Ethernet frame. Developed by Beckhoff Automation and maintained by the EtherCAT Technology Group (ETG) with over 8,100 members across 76 countries, EtherCAT has become the dominant protocol for high-speed motion control applications.

Key Technical Specifications

EtherCAT on Valve Manifolds: Where It Excels

EtherCAT’s sub-microsecond synchronization makes it the protocol of choice for applications where valve switching must align precisely with motion axes. In semiconductor die-bonding, for instance, a vacuum solenoid valve must actuate within 100 µs of the pick-and-place head reaching its target position — IO-Link’s 400 µs minimum cycle time cannot meet this requirement reliably. For valve manifolds on EtherCAT networks:

• Deterministic timing: Distributed clocks ensure every valve on the manifold switches within ±100 ns of the commanded time — critical for high-speed pick-and-place and dispensing in 3C electronics assembly.
• Integrated motion + pneumatics: A single EtherCAT cable carries servo drive commands, I/O data, and valve manifold control — no separate network segments, no protocol gateways.
• Long-distance capability: 100-meter segments between nodes allow valve manifolds to be placed directly at the point of use on large assembly lines, far from the control cabinet.
• FSoE safety integration: Safety-rated pneumatic functions (e.g., emergency venting, safe exhaust) can run on the same EtherCAT network as standard control, eliminating redundant safety relays and wiring.

Head-to-Head Comparison

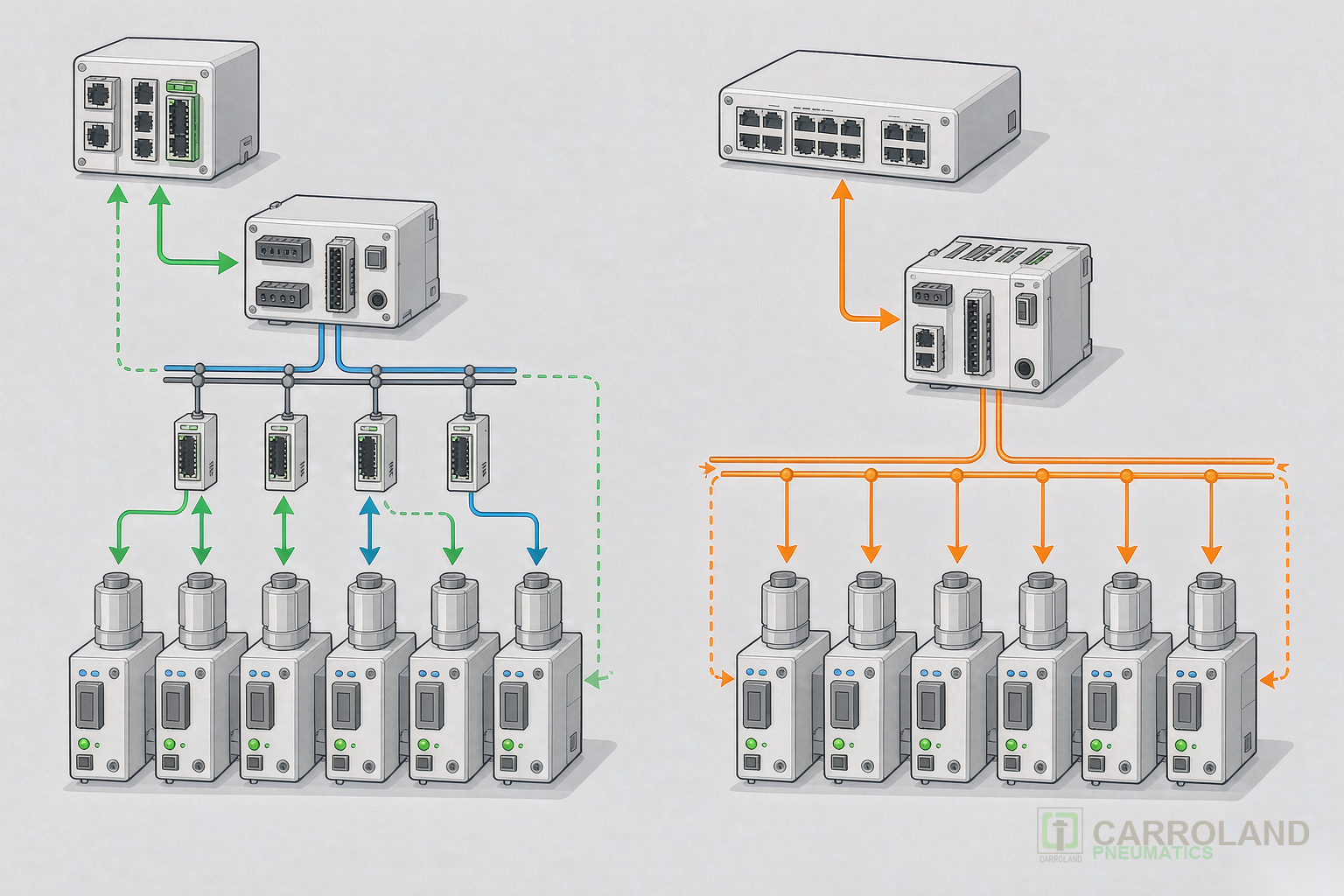

graph TD
    subgraph "Automation Pyramid"
        A[Cloud / MES] --> B[PLC / Industrial PC]
        B --> C[EtherCAT Master]
        C --> D[EtherCAT Valve Manifold]
        C --> E[IO-Link Master]
        E --> F[IO-Link Valve Manifold]
        C --> G[Servo Drive]
        C --> H[I/O Module]
    end

    subgraph "EtherCAT Domain"
        D --> D1["✓ <1 µs sync"] D --> D2["✓ 100m cable"]
        D --> D3["✓ Motion + I/O on one bus"]
    end

    subgraph "IO-Link Domain"
        F --> F1["✓ Auto parameter restore"]
        F --> F2["✓ Per-valve diagnostics"]
        F --> F3["✓ Standard 3-wire cable"]
    end

    style A fill:#e8e8e8,stroke:#999
    style B fill:#d4e6f1,stroke:#2980b9
    style C fill:#d5f5e3,stroke:#27ae60
    style D fill:#d5f5e3,stroke:#27ae60
    style E fill:#fdebd0,stroke:#e67e22
    style F fill:#fdebd0,stroke:#e67e22

Hybrid Architecture: The Best of Both Worlds

In practice, the most common architecture in smart factories is neither IO-Link-only nor EtherCAT-only — it is a hybrid topology. EtherCAT serves as the backbone for real-time control, while IO-Link masters connect to EtherCAT as distributed I/O hubs, managing clusters of smart sensors and valve manifolds at the field level.

Consider a typical 3C electronics assembly line for smartphone production. The main PLC communicates via EtherCAT to servo-driven pick-and-place robots, conveyor motors, and high-speed vision inspection cameras — all requiring microsecond-level synchronization. Distributed IO-Link masters, connected to the same EtherCAT network, manage local clusters of pneumatic solenoid valve manifolds, pressure sensors, and position switches. The IO-Link layer delivers per-valve cycle counts and coil health data to the maintenance dashboard, while the EtherCAT layer guarantees that vacuum pick-up and part placement happen with nanosecond precision.

This architecture is not hypothetical. According to the IO-Link Community, by 2025, 71 million IO-Link nodes were installed globally, with PROFINET and EtherNet/IP serving as the most common upper-level networks. The EtherCAT Technology Group (ETG) reported 105.2 million nodes in the same period, with electronics assembly accounting for 22.5% of EtherCAT market revenue (USD 416.32M). These two protocols are not competing — they are complementary layers of the modern automation stack.

Selection Decision Framework

Use the following decision tree to determine the right protocol for your valve manifold application:

graph TD
    Start["Start: Valve Manifold Protocol Selection"]
    Start --> Q1{"Cycle time requirement < 2 ms?"} Q1 -->|Yes| ECAT1["EtherCAT recommended"]
    Q1 -->|No| Q2{"Multi-axis motion coordination needed?"}
    Q2 -->|Yes| ECAT2["EtherCAT + IO-Link hybrid"]
    Q2 -->|No| Q3{"Predictive maintenance / per-valve diagnostics required?"}
    Q3 -->|Yes| IOL1["IO-Link recommended"]
    Q3 -->|No| Q4{"Cable distance from controller > 20m?"}
    Q4 -->|Yes| ECAT3["EtherCAT recommended"]
    Q4 -->|No| Q5{"Safety functions (SIL) on pneumatic circuits?"}
    Q5 -->|Yes| ECAT4["EtherCAT with FSoE"]
    Q5 -->|No| IOL2["IO-Link: cost-optimal choice"]

    style Start fill:#d5f5e3,stroke:#27ae60,stroke-width:2px
    style ECAT1 fill:#d4e6f1,stroke:#2980b9,stroke-width:2px
    style ECAT2 fill:#d4e6f1,stroke:#2980b9,stroke-width:2px
    style IOL1 fill:#fdebd0,stroke:#e67e22,stroke-width:2px
    style ECAT3 fill:#d4e6f1,stroke:#2980b9,stroke-width:2px
    style ECAT4 fill:#d4e6f1,stroke:#2980b9,stroke-width:2px
    style IOL2 fill:#fdebd0,stroke:#e67e22,stroke-width:2px

Industry Application: 3C Electronics Assembly

The 3C (Computer, Communication, Consumer electronics) sector represents the fastest-growing application for intelligent valve manifolds. A typical smartphone production line at a Foxconn-certified facility may deploy 150-300 solenoid valve stations controlling vacuum grippers, clamping cylinders, and dispensing actuators across 40+ assembly stations. The communication protocol choice directly affects three KPIs:

• Line changeover time: IO-Link’s automatic parameter restoration reduces valve configuration time from approximately 45 minutes (manual) to under 5 minutes when switching between phone models.
• Unplanned downtime: Per-valve cycle tracking on IO-Link manifolds enables condition-based replacement — the maintenance team replaces valves during scheduled PM windows rather than reacting to failures that halt production.
• Precision: EtherCAT’s distributed clocks (±100 ns) ensure that vacuum release and part placement are synchronized to within one servo encoder count — essential for 0201 component placement where positioning error tolerances are measured in microns.

FAQ

Can IO-Link and EtherCAT coexist on the same valve manifold?

Not on the same physical manifold communication interface — a valve manifold typically has one protocol interface (either IO-Link or EtherCAT). However, they coexist at the system level: an IO-Link master with an EtherCAT interface can bridge IO-Link valve manifolds onto an EtherCAT backbone network. This is the recommended hybrid architecture for production lines that need both per-valve diagnostics (IO-Link) and real-time synchronization (EtherCAT).

What is the cost difference between IO-Link and EtherCAT for a 16-station valve manifold?

For a 16-station manifold, an IO-Link solution typically costs 25-35% less than an equivalent EtherCAT manifold, primarily because EtherCAT requires an ESC (EtherCAT Slave Controller) chip per manifold while IO-Link uses simpler transceiver ICs. However, this comparison is misleading if taken in isolation — if the production line already runs an EtherCAT backbone for servo drives, the marginal cost of adding an EtherCAT valve manifold may be lower than adding a separate IO-Link master and network segment. Always evaluate total system cost, not per-component cost.

Which protocol is better for a pneumatic solenoid valve manifold in a new greenfield factory?

For a greenfield factory, the recommended approach is an EtherCAT backbone with distributed IO-Link masters for field device connectivity. This gives you the real-time performance of EtherCAT for motion control and the device-level intelligence of IO-Link for valve and sensor diagnostics — without the cost of equipping every simple sensor and actuator with an EtherCAT interface. The IO-Link master consolidates up to 8 ports of device data into a single EtherCAT frame, keeping network overhead minimal while maximizing field-level visibility.

Key Takeaways

• IO-Link (IEC 61131-9:2022) is the right choice when per-valve diagnostics, automatic parameter restoration, and cost-effective device connectivity are the priorities. With 71 million nodes deployed globally and standardized valve profiles, it is the mature field-level protocol for smart pneumatics.
• EtherCAT is the right choice when microsecond-level synchronization, multi-axis motion coordination, and functional safety (FSoE) are required. With 105.2 million nodes and 17% market share in industrial Ethernet, it is the dominant protocol for high-performance machine control.
• Hybrid EtherCAT + IO-Link architectures deliver the best of both worlds and represent the de facto standard in modern smart factories — EtherCAT handles the real-time backbone while IO-Link masters provide intelligent field device connectivity at the valve manifold level.
• When sourcing solenoid valve manifolds, verify that the supplier offers both IO-Link and EtherCAT interface options. A supplier with dual-protocol capability ensures future flexibility as your automation architecture evolves. For the air preparation systems that feed these valve manifolds, see our FRL air preparation unit selection guide. For actuator sizing methodology, refer to our pneumatic cylinder sizing calculation guide.
