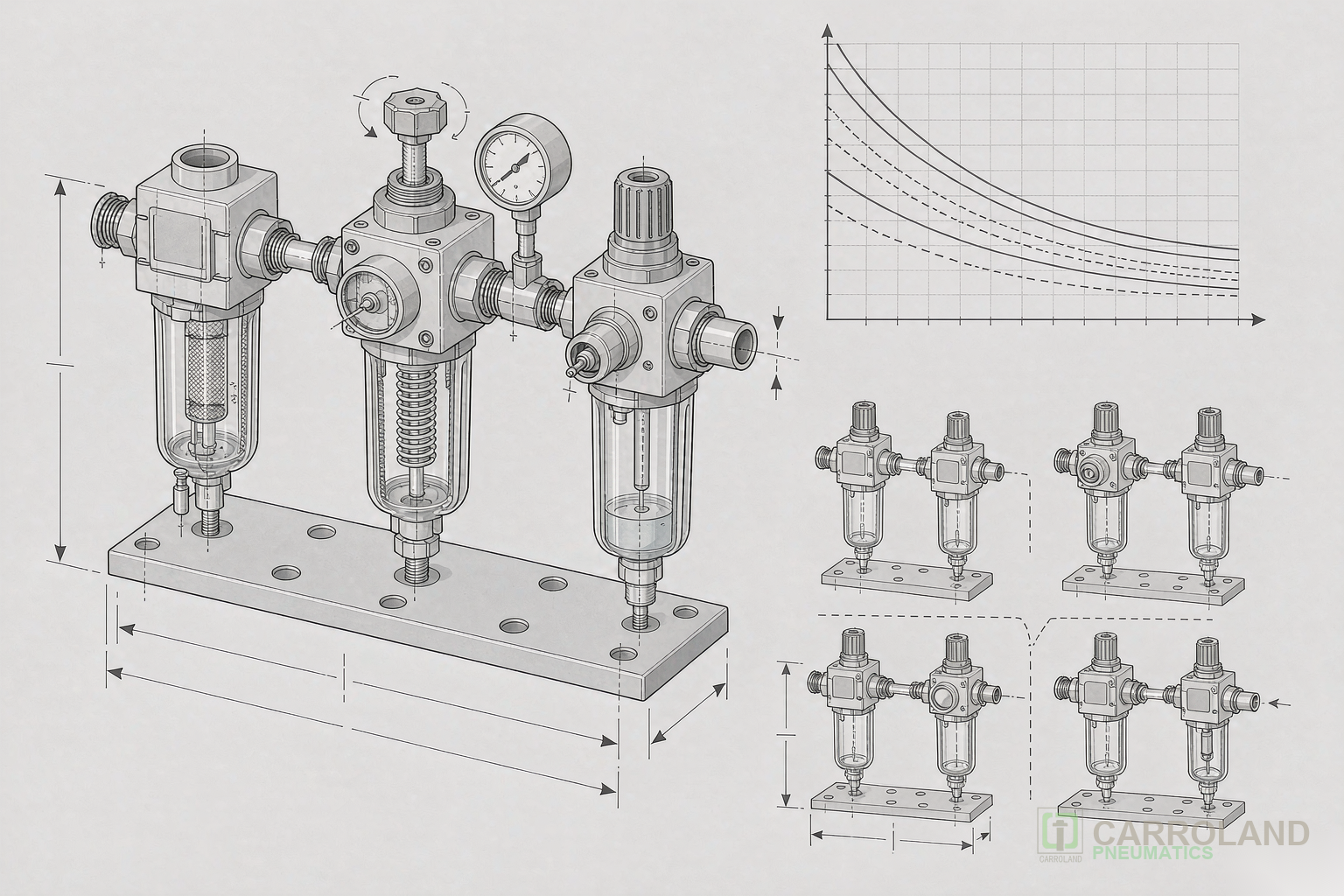

Why FRL Air Preparation Units Are the Most Undervalued Component in Pneumatic Systems
Industry data consistently shows that 80-90% of pneumatic system failures originate from contaminated or improperly conditioned compressed air (source: ISO 8573-1 field studies, premium Japanese brands Application Reports 2023-2025). Yet FRL units — the air filter, regulator, and lubricator combination that treats compressed air before it reaches actuators and valves — remain the most frequently underspecified component in pneumatic system design.
A typical mid-sized automated production line in Southeast Asia or India loses 15-25% of its pneumatic uptime to moisture-induced valve sticking, particulate wear on cylinder seals, and inconsistent pressure causing cycle-time drift. These losses are almost entirely preventable with correctly sized and configured FRL air preparation units.
This guide covers the complete methodology for FRL sizing and selection based on first principles of compressed air treatment, not commercial catalogs. By the end, you will be able to specify an air preparation unit for any pneumatic system using flow demand, pressure requirements, and air quality class alone.
Understanding the Three Core Functions of an FRL Unit
Air Filter — Particulate and Moisture Removal
The filter element removes solid particles (rust, pipe scale, compressor wear debris) and liquid water (condensed from compression cooling). The standard filter rating is 5-micron for general industrial use; 0.01-micron coalescing filters for critical applications like pharmaceutical or food-grade pneumatic systems.
ISO 8573-1 classifies compressed air quality into purity classes. For pneumatic actuators and valves:
| ISO 8573-1 Class | Solid Particle | Water (Pressure Dew Point) | Oil | Suitable Applications |
|---|---|---|---|---|
| Class 1 | <0.1 μm, <20,000/m³ | ≤-70°C | <0.01 mg/m³ | Pharma, semiconductor, cleanroom |
| Class 2 | <1 μm, <400,000/m³ | ≤-40°C | <0.1 mg/m³ | Food & beverage, precision automation |
| Class 3 | <5 μm, <6,000,000/m³ | ≤-20°C | <1 mg/m³ | General industrial, packaging, textile |
| Class 4 | <15 μm | ≤+3°C | <5 mg/m³ | Construction, mining, basic actuation |
For pneumatic cylinders and valves operating in Vietnam’s tropical climate (85-95% RH), Class 3 filtration with auto-drain is the minimum recommended configuration to prevent rust-accelerated seal wear.
Pressure Regulator — Stabilizing Downstream Pressure
Compressed air from a distribution network fluctuates by 0.5-1.5 bar depending on compressor cycling and demand variation. A pressure regulator downstream of the filter reduces and stabilizes pressure to the setpoint required by actuators and valves.
Selection rule: regulator flow capacity must equal 1.5-2.0× the peak system flow demand at the regulated pressure. Undersized regulators cause pressure droop under load — the most common root cause of inconsistent actuator force in packaging lines.
Lubricator — Controlled Oil Delivery (Optional)
Modern pneumatic automation components with pre-lubricated seals (e.g., NBR/FKM/PU wiper seals) often do not require line lubrication. However, for high-speed applications (>200 cycles/min) or legacy equipment, a lubricator delivering ISO VG 32 oil at 1-5 drops/min extends seal life by 3-5×.
Critical rule: If you lubricate, you must lubricate continuously — stopping oil delivery after seals have been running with oil causes rapid dry-out and failure within 48-72 hours. Micro-fog lubricators are preferred for multi-point systems; oil-fog for single-point high-flow applications.
FRL Sizing Methodology — Step by Step
Step 1: Calculate Total System Flow Demand
Sum the air consumption of all downstream components using the cylinder air consumption formula:
Q = A × L × N × (P + 1.013) / 1.013 — where A is piston area derived from cylinder bore. For bore selection methodology, see our pneumatic cylinder selection guide.
- Q = air consumption (L/min)
- A = piston area (cm²)
- L = stroke length (cm)
- N = cycles per minute
- P = gauge pressure (bar)
Add a safety margin of 25-30% for future expansion and leakage allowance.
Step 2: Determine Port Size from Flow Rate
| Port Size | Recommended Flow Range (L/min at 6.3 bar) | Typical System |
|---|---|---|
| G1/4″ | 500-1,500 | Single machine, small packaging line, test bench |
| G3/8″ | 1,200-3,500 | Multi-station assembly, textile machine, conveyor |
| G1/2″ | 2,500-6,000 | Production line zone, molding machine, large actuator bank |
| G3/4″ | 5,000-12,000 | Factory sub-mains, heavy automation, central panels |
| G1″ | 10,000-25,000 | Main distribution manifolds, compressed air trunk lines |
Flow values based on ISO 8778 standard conditions (P1=6.3 bar, ΔP=1 bar, T=20°C). Always derate by 15% when operating in ambient temperatures above 40°C (Vietnam/India summer conditions).
Step 3: Select Configuration (Modular vs. Integrated)
| Configuration | Advantages | Disadvantages | Best For |
|---|---|---|---|
| Modular (separate F-R-L) | Individual replacement, flexible positioning, mixed brands | More leak points, larger footprint | Centralized air prep, multi-pressure systems |
| Integrated combo unit | Compact, fewer leak points, lower cost | Single failure = full replacement | Machine-level installation, OEM equipment |
| FRL + soft-start valve | Gradual pressurization, safety lock-out | Higher initial cost | Automotive safety, ISO 13849 circuits |
| FRL with digital sensors | IoT-ready, pressure/flow/temp monitoring | 2-3x cost premium | Smart factory, Industry 4.0, IIoT retrofits |
FRL Selection by Application: Comparative Guide
| Application | Filtration | Regulator Precision | Lubrication | Port Size | Market Preference |
|---|---|---|---|---|---|
| Food & Beverage (Vietnam) | 5 μm + 0.01 μm coalescing | ±0.2 bar precision | None (NSF H1 grease pre-applied) | G1/4″-G1/2″ | SS housing or anodized Al |
| Textile (India Tirupur/Surat) | 5 μm + auto-drain | ±0.5 bar std | Micro-fog, ISO VG 32 | G3/8″-G1/2″ | Cost-optimized, IS 15867/ISO 15552-dimensioned (BIS-ready) |
| Automotive Assembly | 5 μm + coalescing | ±0.1 bar high-precision | None (pre-lubricated seals) | G3/8″-G3/4″ | Modular with soft-start |
| Pharmaceutical | 0.01 μm coalescing + sterile filter | ±0.05 bar electronic regulator | None (oil-free certified) | G1/4″-G1/2″ | SS316, FDA-approved materials |
| General Manufacturing (Global) | 5 μm standard | ±0.5 bar std | Optional micro-fog | G1/4″-G3/4″ | Cost-performance balanced |
| Plastic Injection Molding | 5 μm + auto-drain | ±0.1 bar precision | None (mold protection) | G1/2″-G3/4″ | Large capacity, high-flow |
Installation Best Practices for Optimal FRL Performance
Positioning Rules
- Always install FRL as close to the point of use as possible — every meter of pipe between FRL and actuator re-introduces condensate and pressure drop. Maximum recommended distance: 5-7 meters.
- Mount vertically with bowl facing downward for proper drainage. Horizontal mounting reduces separation efficiency by 30-40%.
- Install a drip-leg (water trap) before the FRL if the supply line exceeds 15 meters — this captures bulk condensate before it reaches the filter element.
- Provide bypass loop for maintenance — a 3-valve bypass (ball valve + FRL + check valve) allows FRL servicing without production shutdown.
Maintenance Schedule
| Interval | Task | Indicator |
|---|---|---|
| Daily | Drain filter bowl (manual) or check auto-drain function | Water level should not exceed 1/3 of bowl height |
| Weekly | Check lubricator oil level and drip rate | Target: 1-5 drops/min for general use |
| Monthly | Inspect filter element condition | Replace if discolored, cracked, or >6 months in service |
| Quarterly | Check regulator output pressure accuracy | Re-calibrate if deviation exceeds ±0.3 bar |
| Annually | Full FRL replacement or rebuild | Seal degradation, spring fatigue, bowl cracking |
FRL Unit Cost Analysis: OEM vs. Aftermarket (2026)
| Configuration | Imported (USD) | Carroland (USD) | Savings % | Lead Time (Imported) | Lead Time (Carroland) |
|---|---|---|---|---|---|
| G1/4″ Modular F-R-L | $85-140 | $18-35 | 60-75% | 4-6 weeks | 7-15 days |
| G3/8″ Integrated Combo | $95-170 | $22-42 | 60-75% | 4-6 weeks | 7-15 days |
| G1/2″ High-Flow FRL | $120-220 | $30-55 | 60-75% | 5-8 weeks | 10-20 days |
| G3/4″ Industrial FRL Panel | $180-350 | $42-78 | 65-78% | 6-8 weeks | 12-22 days |
| G1″ Heavy-Duty FRL Station | $280-500 | $65-120 | 65-76% | 6-10 weeks | 15-25 days |
| Smart FRL (IoT/IO-Link) | $350-650 | $85-160 | 60-75% | 8-12 weeks | 20-30 days |
Pricing: FOB China, CIF Vietnam add 2-5%, CIF India add 3-6%. All Carroland FRL units carry CE marking and are manufactured under ISO 9001:2015. Compatible replacement for industry-standard MS series, industry-standard AW/AF/AL series, and industry-standard GFR/GLR series modules.
Regional Considerations: FRL Selection for Vietnam and India
Vietnam: Tropical Climate Demands
Vietnam’s ambient humidity (80-95% year-round in the south) means compressed air exiting a 7-bar compressor at 35-40°C immediately begins condensing when cooled. For factories in Binh Duong, Dong Nai, and Ho Chi Minh City industrial parks:
- Auto-drain filters are mandatory — manual drainage is impractical for 2-shift operations. A 40mm auto-drain bowl on G3/8″ FRL handles ~0.5L condensate per 8-hour shift per 200 L/min flow.
- Polycarbonate bowls degrade under UV + heat — specify polyamide or metal bowls for outdoor/roof-mounted installations.
- CIF shipping from China to Hai Phong port: 5-7 days, with RCEP 0% tariff on pneumatic components. A G1/2″ FRL from Carroland delivered to Ho Chi Minh City costs $38-60 total landed.
India: Cost Sensitivity and BIS Compliance
The Indian pneumatic market at $31 billion (2026, projected to $52 billion by 2032) is highly price-sensitive, with mid-market buyers demanding high-end quality at competitive pricing. For textile mills in Tirupur, automotive Tier-2 suppliers in Pune/Chennai, and plastic processors in Gujarat:
- BIS certification (IS 13122 for pneumatic components) is increasingly enforced by OEMs and government tenders on GeM portal. Carroland FRL units are ISO 9001 certified and built to BIS-equivalent IS 13122 / ISO 15552 dimensional standards, and we recommend purchasing through our India distribution partners for seamless BIS documentation.
- Price point for Indian market: G3/8″ integrated FRL at $25-30 FOB China. After duties (7.5% basic + 10% social welfare surcharge) and logistics, landed cost to Mumbai/Nhava Sheva: $33-40 — competitive with domestic Indian manufacturers and significantly below imported brands ($100-160).
- Government e-Marketplace (GeM) procurement is growing — FRL units for public sector textile parks and defence production lines should include GST invoice and BIS-compliant technical datasheet.
Common FRL Sizing Mistakes and How to Avoid Them
- Mistake: Undersizing the filter for peak flow. A G1/4″ filter rated for 1,000 L/min at 6.3 bar will cause 0.8-1.2 bar pressure drop when connected to a machine that briefly draws 1,500 L/min. Fix: Size filter port one size larger than the system’s nominal port requirement.
- Mistake: Using lubricator with non-lube valves. Modern pre-lubricated valves (Carroland SV series and comparable imported valves) can fail if oil accumulates on spool surfaces and attracts dust. Fix: Specify lubricator only for known lubrication-required components or legacy equipment.
- Mistake: Neglecting pressure droop during sizing. A regulator’s flow curve is not linear — at 80% of rated flow, output pressure may drop 0.3-0.5 bar. Fix: Select regulator with maximum flow 1.5-2× expected peak flow.
- Mistake: Mounting FRL in a hot enclosure. Ambient temperatures >50°C reduce polycarbonate bowl impact resistance by 60% (ISO 13824 test). Fix: Use metal bowls or mount FRL outside the control cabinet.
- Mistake: Single FRL for multiple pressure zones. A machine requiring 2 bar for low-force grippers and 6 bar for clamping needs two separate FRLs or a dual-regulator system. Fix: Multi-pressure systems always require individual regulators per zone.
Frequently Asked Questions
Q1: What does FRL stand for in pneumatic systems?
FRL stands for Filter, Regulator, and Lubricator — the three sequential components that prepare compressed air for use in pneumatic actuators, valves, and tools.
Q2: What size FRL unit do I need for a pneumatic system with 5 cylinders?
Calculate total air consumption using the formula in Step 1 above. For 5 cylinders (40mm bore, 200mm stroke, 30 cycles/min, 6 bar): Q ≈ 5 × (12.56 × 20 × 30 × 7.013 / 1.013) ≈ 2,600 L/min. The recommended FRL port size is G1/2″.
Q3: Can I use a Carroland FRL unit as a replacement for legacy imported units?
Yes — Carroland FRL series are dimensionally and functionally interchangeable with industry-standard AW/AF/AL, MS, and GFR/GLR series form factors. G1/4″, G3/8″, G1/2″ port configurations match standard mounting hole patterns. The key difference: Carroland delivers 60-75% cost savings with ISO 9001 certification and equivalent flow characteristics.
Q4: Is an FRL unit necessary for every pneumatic system?
Yes, unless the compressed air supply is already treated to ISO 8573-1 Class 1 or 2 at the source and the distribution piping is stainless steel or copper (not galvanized iron or PVC). In practice, 95%+ of industrial pneumatic installations benefit from a point-of-use FRL.
Q5: How often should I replace FRL filter elements?
Every 6 months for standard 5-micron elements in normal industrial environments. Reduce to 3 months in high-particulate environments (textile mills, wood processing, cement plants). Coalescing elements (0.01 micron) should be replaced at 1-year intervals or when pressure drop across the filter exceeds 0.7 bar.
Q6: What is the difference between modular and integrated FRL units?
Modular FRL consists of separate filter, regulator, and lubricator modules connected by brackets or short nipples, allowing individual replacement. Integrated combo units house F, R, and L in a single body — more compact but must be replaced as a whole when any component fails.
Q7: Do I need a lubricator if my cylinders are pre-lubricated?
For cylinders with pre-lubricated NBR/FKM wiper seals operating below 200 cycles/min in clean environments: no, lubrication is not required. For speeds above 200 cycles/min, high-temperature environments, or legacy equipment with older seal materials: a micro-fog lubricator is recommended.
Q8: What is the correct way to install an FRL unit for a textile mill in India?
For Indian textile mill conditions (high ambient temperature 40-45°C, lint concentration 0.5-2 mg/m³): (1) Use G3/8″ or G1/2″ FRL with metal bowl in lint-heavy zones, (2) install auto-drain filter, (3) specify BIS-compliant documentation, (4) budget for 3-month filter element replacement cycle.
Q9: Can IoT-enabled FRL units reduce compressed air costs?
Yes. Smart FRL units with IO-Link sensors monitoring pressure, flow, and filter element condition can reduce compressed air waste by 15-25% through: (1) alerting on pressure droop indicating blockage, (2) quantifying individual machine air consumption for cost allocation, (3) scheduling predictive filter replacement before pressure drop affects production.
Q10: What is the ROI of replacing undersized FRL units?
A 2025 study across 12 Vietnam factories found that correcting undersized FRL units (replacing G1/4″ with G3/8″ where peak demand exceeded 1,200 L/min) reduced cycle time variation by 18%, lowered air compressor runtime by 11%, and achieved payback within 3.2 months through reduced energy costs alone.
Quick Reference: FRL Selection Decision Matrix
| If Your System Priority Is… | Choose This FRL Configuration | Key Specification |
|---|---|---|
| Lowest upfront cost | Integrated combo unit, G1/4″-G3/8″ | 5-micron filter, standard regulator, no lubricator |
| Lowest total cost of ownership | Modular FRL, G3/8″-G1/2″ with auto-drain | 5-micron + coalescing, precision regulator, micro-fog optional |
| Maximum uptime (automotive) | Modular FRL + soft-start + bypass | Auto-drain, metal bowls, precision ±0.1 bar regulator |
| Smart factory / IIoT readiness | Digital FRL with IO-Link sensors | Pressure sensor + flow sensor + filter element monitoring |
| Food / Pharma (oil-free) | Coalescing FRL + sterile vent filter | 0.01 μm filtration, SS316, FDA-certified seals |
| High-temperature environment | FRL with metal bowl and high-temp seals | Aluminum or polyamide bowl, FKM seals, rated to 80°C |
Conclusion: Making the Right FRL Investment
The FRL air preparation unit is the single most cost-effective upgrade for any pneumatic system operating below its design performance. The selection logic is straightforward: (1) calculate total system flow demand with 25-30% safety margin, (2) select port size from the flow range table, (3) choose filtration class per application, (4) configure for the operating environment (humidity, temperature, particulates), and (5) source from a manufacturer with proven interchangeability and competitive lead times.
Carroland’s FRL series covers G1/4″ to G1″ port sizes, modular and integrated configurations, standard to smart digital options — with 60-75% cost savings versus premium European brands and premium Japanese brands, CE/ISO 9001 certification, and 7-25 day lead times to global markets including Vietnam, India, and Southeast Asia. For B2B buyers evaluating FRL units for production-scale deployment, the core engineering question is not which brand — it is which filtration class and port size your flow demand requires.
