Pneumatic Cylinder Types: Selection Guide for Indian Manufacturers
Indian factories specify pneumatic cylinder types by bore, stroke, and mounting before they place a bulk order. Carroland Pneumatics supplies ISO 15552 cylinders to automotive lines in Pune, electronics plants in Chennai, and textile units across Tamil Nadu. This guide explains how each type works, where it fits an Indian production cell, and what BIS and local-content rules change for procurement.
What the ISO 15552 Standard Covers
ISO 15552, formerly ISO 6431, defines the interface dimensions for round and profile pneumatic cylinders with bores from 8 mm to 320 mm. A standard cylinder keeps the piston rod, port thread, and mounting face interchangeable across suppliers. For Indian buyers, the standard cuts vendor lock-in and simplifies spare-part stocking on the shop floor.

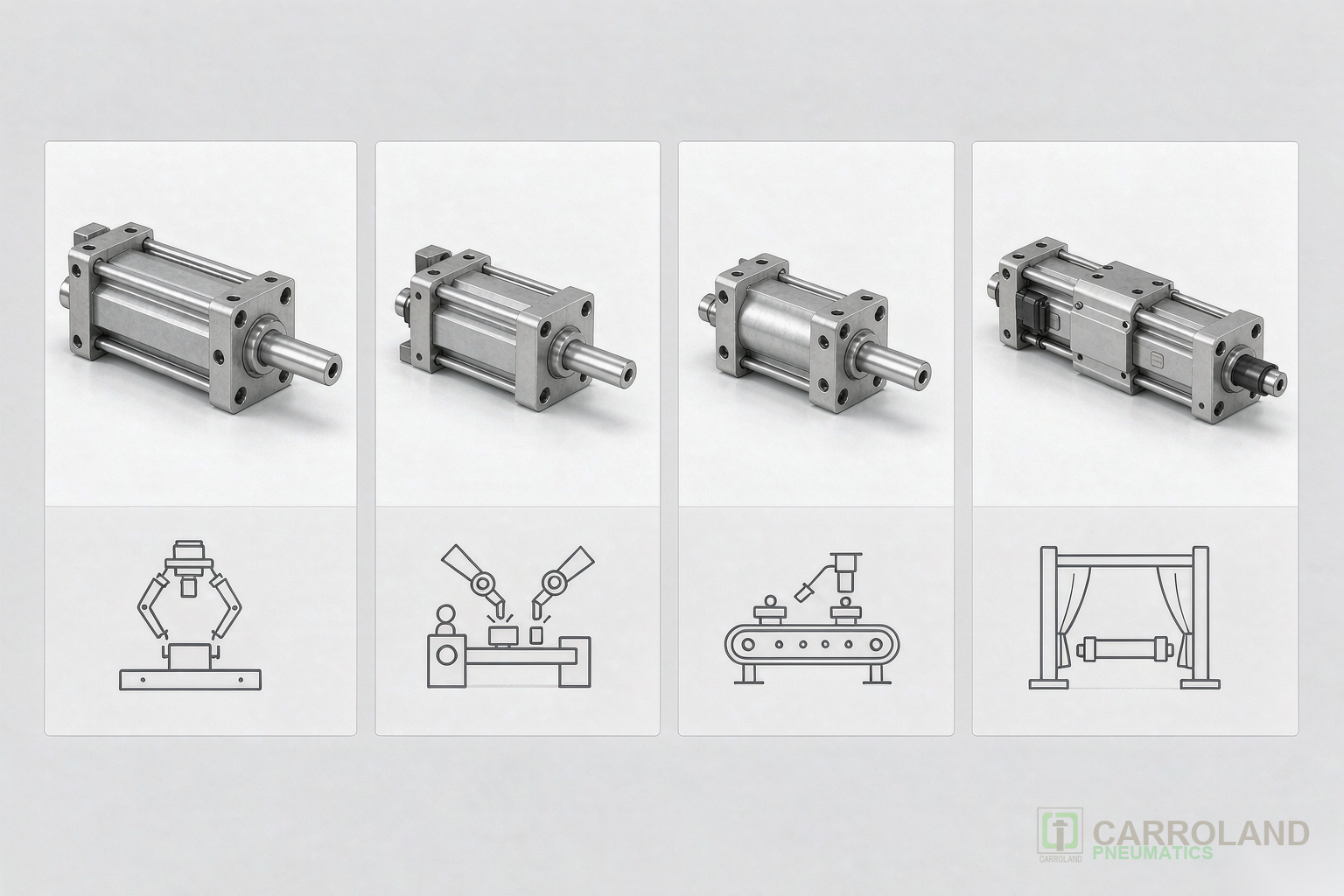

Main Pneumatic Cylinder Types
| Type | Action | Typical use in India |
|---|---|---|
| Double acting pneumatic cylinder | Air drives both directions | Pressing, clamping, automation fixtures |
| Single acting pneumatic cylinder | Spring return, one air port | Small lifts, gates, ejectors |
| Rodless cylinder | Slider carries the load | Long-stroke transfer lines |
| Compact cylinder | Short body, high force | 3C electronics jigs |
How a Double Acting Pneumatic Cylinder Works
A double acting pneumatic cylinder uses compressed air at 1 to 10 bar on each side of the piston. Air enters the cap-end port to extend the rod, then the rod-end port to retract it. Stroke lengths from 10 mm to 2500 mm cover most Indian assembly cells. Engineers select bore size from the required thrust: a 32 mm bore at 6 bar delivers roughly 480 N of force.
Single Acting Pneumatic Cylinder and Its Parts
A single acting pneumatic cylinder extends with air and retracts with a spring. It needs one port and one air line, which lowers cost on simple tasks. The core pneumatic cylinder parts are the drawn tube, aluminium piston, chrome-plated rod, and polyurethane seals rated for 10 million cycles. Worn seals cause the slow drift that Indian maintenance teams notice first.
Selecting Cylinders for Indian Conditions
Indian shop floors face high dust and humidity. Filter-regulator units protect the cylinder, as covered in our air preparation guide. Specify stainless rods for coastal plants near Mumbai and Chennai. For leading electronics OEM-class 3C lines, repeatability of ±0.02 mm matters more than raw force.
BIS and Local-Content Considerations
BIS certification under IS 15867 and IS 15969 applies to pneumatic cylinders placed on the Indian market. Carroland supports PLI-linked buyers with documentation and factory-direct pricing in INR. Our BIS-compliance components page lists the current scope.
Frequently Asked Questions
Which pneumatic cylinder types suit a Pune automotive line?
Double acting ISO 15552 cylinders handle weld-gun clamping and press duties. Rodless types serve long transfer strokes. Most lines standardise on 32 mm and 40 mm bores.
How long do pneumatic cylinder parts last?
With clean, dry air at 6 bar, quality seals reach 10 million cycles. A 5 micrometre filter cuts failure rates sharply in dusty Indian plants.
Are single acting pneumatic cylinders cheaper?
Yes. One port, one air line, and a spring return lower the bill of materials. Use them where return force is not critical.
Do I need BIS certification for import?
Components under the notified IS 15867 and IS 15969 scope require BIS marking. Confirm the current list with BIS India before shipment.
