Pneumatic Spring Return Cylinders: Types, Force & Selection
A pneumatic spring mechanism powers the fail-safe reset that automation lines rely on: when a cylinder must return to a defined home position after air loss, a spring return air cylinders design stores mechanical energy in an internal coil so the rod retracts or extends without a second air port. This article explains how spring-return actuators generate force, how to size them against load, and where they beat double-acting cylinders on cost and air consumption.
Background: Where Spring Return Fits in a Pneumatic Line

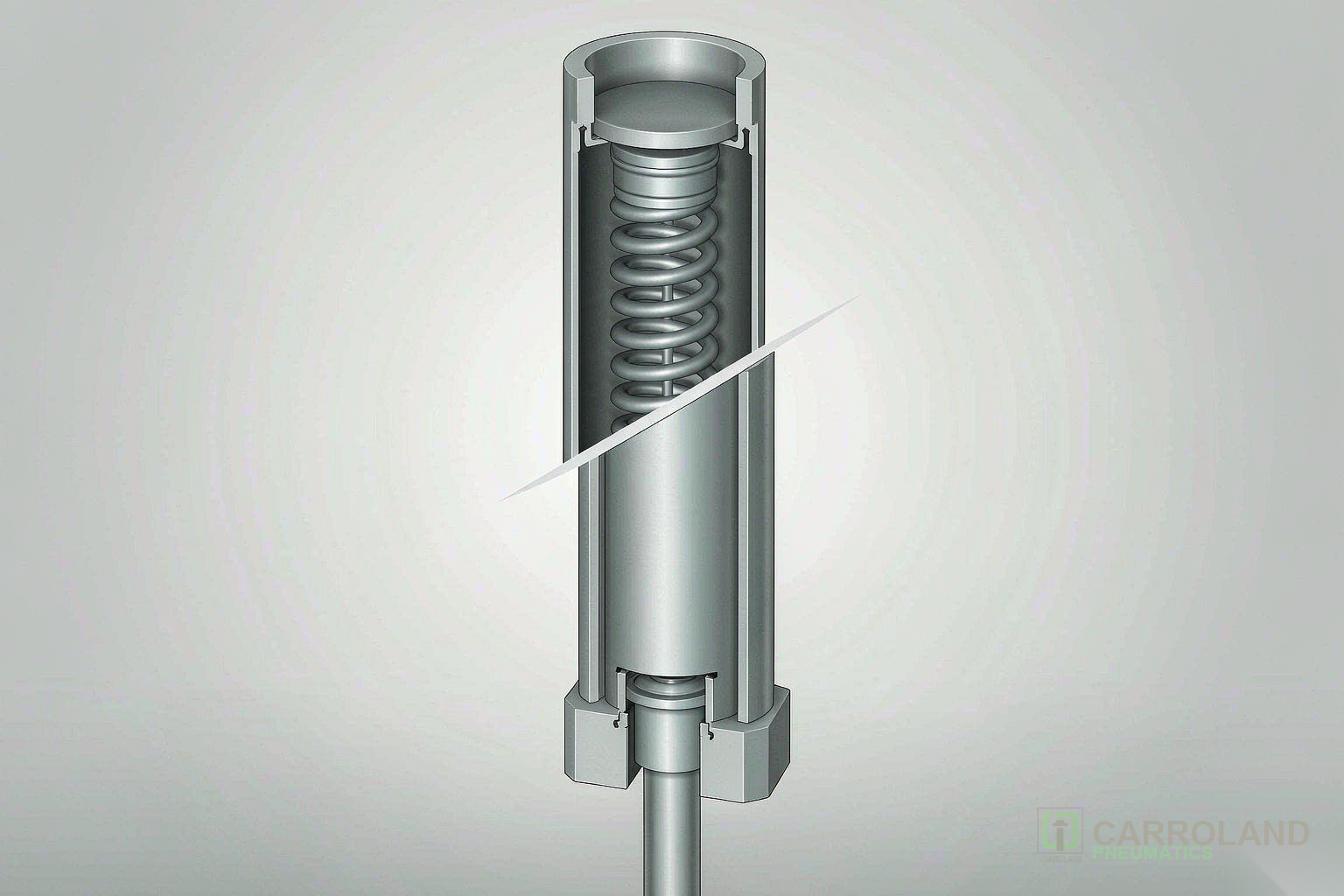

A spring return cylinder is a single-acting actuator. One air chamber drives the piston; a helical spring performs the return stroke. The pneumatic spring return architecture removes the return-side port, the second solenoid, and roughly half the plumbing of an equivalent double-acting unit. Carroland builds these actuators to ISO 15552 (32โ320 mm bore) and ISO 6432 (8โ25 mm bore) envelope dimensions, so they drop into standard mounts without redesign.
Engineers reach for a spring return design when the default state must be predictable during a power or air outage. A clamp that must hold a part, a safety gate that must close, or a valve that must shut all qualify. The trade-off is force: the spring fights the air on the working stroke, so net output is never the full pneumatic force.
Principle: Net Force Is Pneumatic Minus Spring
The governing equation defines usable thrust at any stroke position x:
F_net(x) = P ร A โ F_spring(x)
F_spring(x) = F_preload + k ร x
Because the spring compresses as the piston moves, opposing force rises linearly with stroke. The actuator is therefore weakest at full extension โ the critical clamping point. Standard preloads run 20โ100 N and spring rates 1โ10 N/mm depending on bore; typical spring force consumes 15โ25% of the pneumatic thrust. At the common 6 bar design pressure, a 63 mm bore cylinder develops about 1,870 N gross before spring and seal friction, so a realistic clamping force lands near 1,400โ1,600 N.
Stroke position x (mm)
Force (N)
P ร A (constant)
F_spring(x) rising
F_net = PรA โ F_spring (shrinks with stroke)
Spring-return force model
Carroland Pneumatics
Reset speed stays stable at 0.1โ0.3 s and does not depend on supply pressure, which makes the single acting spring return pneumatic actuator attractive for interlocks where timing must be repeatable. A pneumatic spring actuator of this type typically limits stroke to 100โ150 mm because the compressed spring occupies “solid height” inside the barrel; longer travel needs a longer body.
Selection: Size the Return Stroke First
Air pressure is adjustable; spring force is fixed. Size for the return stroke before the working stroke: the spring must push the load home against seal stiction and gravity with margin. We recommend a spring safety factor of 2.0, meaning the spring’s relaxed-state force should double the friction requirement.
| Bore (mm) | Gross force @ 6 bar (N) | Typical spring force (N) | Net clamp force (N) |
|---|---|---|---|
| 25 | 295 | 30โ50 | 245โ265 |
| 32 | 480 | 50โ90 | 390โ430 |
| 40 | 750 | 80โ150 | 600โ670 |
| 63 | 1,870 | 200โ470 | 1,400โ1,670 |
In process control, a spring actuated valve uses the same physics: loss of air drives the stem to the fail-safe position. A spring diaphragm actuator pairs the coil with a flexible diaphragm to position control valves, and the valve actuator spring sets the shut direction. These variants share the F_net model above and the same stroke-length constraint.
Industry Applications
Spring-return actuators dominate fail-safe and energy-sensitive jobs:
- Clamping fixtures โ a normally extended unit holds a part during outage; air releases it. See our pneumatic cylinder selection guide.
- Safety gates and interlocks โ predictable 0.1โ0.3 s reset without electrical power.
- Process valves โ spring actuated and diaphragm versions close on air loss.
- Low-duty pick-and-place โ roughly 50% lower air consumption than double-acting, simplifying the circuit to a 3/2-way valve (see the pneumatic valve and solenoid guide).
For dimension interchangeability and mount planning, consult the ISO 15552 dimensions reference. Press-tool gas springs follow the separate ISO 11901-1:2025 standard, which defines nitrogen-pressurized units from 900 N ยฑ5% to 100 600 N ยฑ5% initial force.
FAQ
How much air does a spring return cylinder save versus a double-acting one?
About 50%. A single-acting unit pressurizes one chamber for half the cycle, so compressor load and valve count drop. This is the main reason to choose spring return for low-duty clamping.
What is the maximum practical stroke?
Standard catalogs cap spring return travel near 100โ150 mm. Longer strokes need a disproportionately longer body to house the compressed spring, so for long travel a double-acting cylinder is the better architecture.
Which directional valve controls a spring return cylinder?
A 3/2-way valve is sufficient: one output port drives the working stroke, and the spring performs the return. This simplifies the manifold compared with the 5/2-way valve a double-acting cylinder requires.
Is a pneumatic spring return cylinder suitable for high clamp force?
Only at moderate levels. The spring consumes 15โ25% of pneumatic thrust and the fail-safe position relies on spring rate alone, so for high holding force engineers often specify a double-acting cylinder with a check valve instead.
What does ISO 11901-1:2025 cover?
It specifies dimensions, nominal initial forces (900 N to 100 600 N), and marking for nitrogen-pressurized gas springs used in press tools โ a different product from the spring-return actuators discussed here, but governed by the same stored-energy principle. Reference: ISO 11901-1:2025.
