Air Preparation Unit (FRL): India Compressed Air Guide

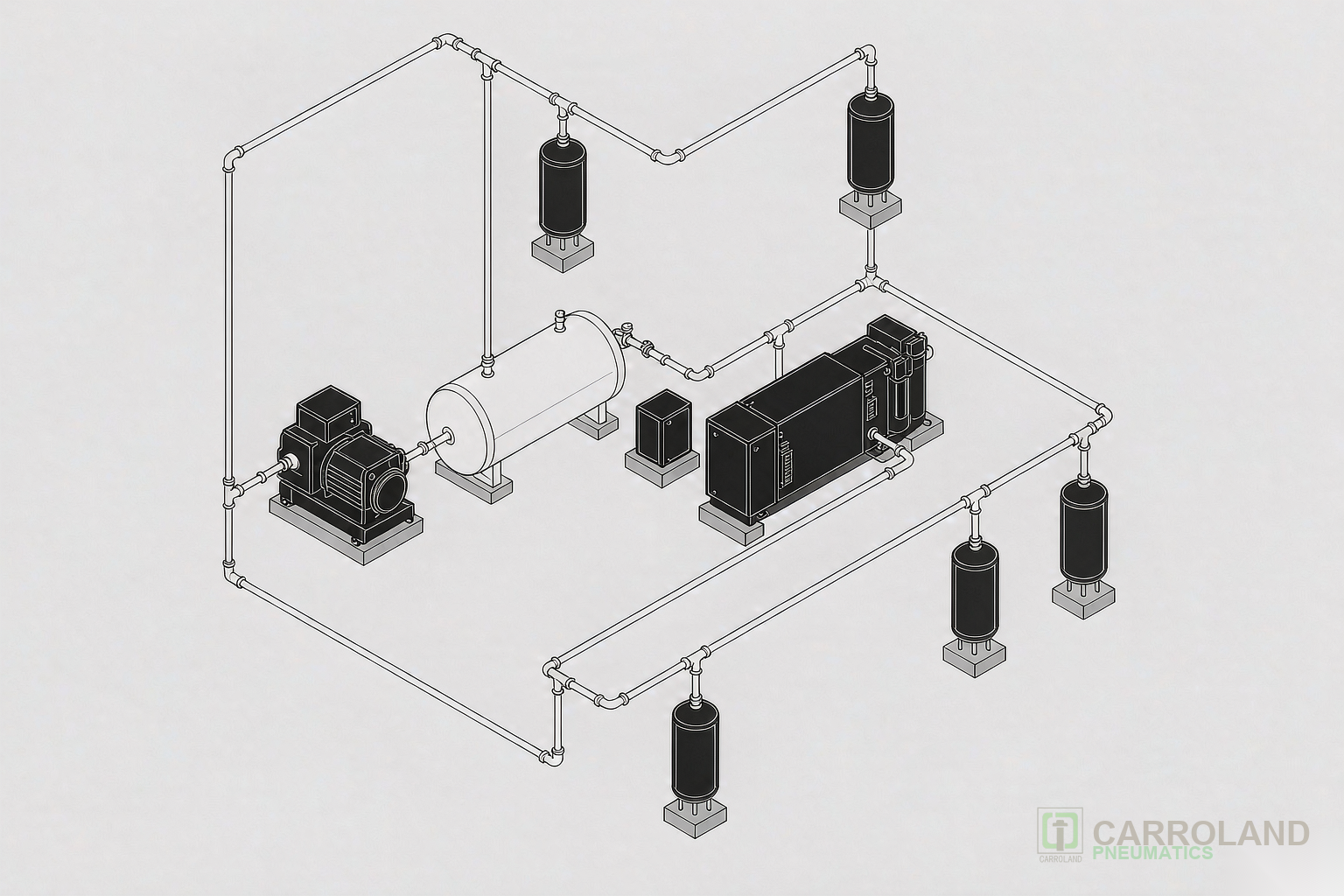

An air preparation unit is the three-stage filter-regulator-lubricator (FRL) that conditions compressed air before it reaches a valve or cylinder. Indian compressors pull in dust, moisture, and oil mist, so conditioning is not optional. Carroland Pneumatics builds FRL stations for textile mills in Coimbatore, packaging lines in Ahmedabad, and electronics plants in Chennai. This guide explains the frl unit working principle and how to size one for Indian supply conditions.
The FRL Unit Working Principle
The frl unit working principle runs in three stages. First, the filter removes particulate down to 5 micrometre and separates condensate through a bowl drain. Next, the regulator cuts line pressure from the 7 to 10 bar mains to a stable 1 to 6 bar at the tool. Finally, the lubricator adds a fine oil mist that protects seals and slides. Clean, dry, regulated air extends actuator life from months to years.
Why Indian Plants Need Strong Filtration
ISO 8573-1 grades compressed air by solid, water, and oil content. An untreated Indian supply often lands at Class 4 or worse on solids. A 5 micrometre element brings it to Class 3; a 0.3 micrometre coalescing element reaches Class 1 for cleanroom electronics. Match the grade to the process, not the catalogue default.
| Stage | Function | Typical setting |
|---|---|---|
| Filter | Remove dust and water | 5 micrometre element |
| Regulator | Hold stable outlet pressure | 1 to 6 bar |
| Lubricator | Add oil mist to air | Light mist for seals |
Choosing an FRL Manufacturer for India
A reliable frl manufacturer supplies interchange-able bowls, metal guards for factory floors, and spare element kits through Indian distributors. Carroland ships common 1/4 inch and 3/8 inch sizes from China and ships with BIS-aligned documentation. For coastal plants near Mumbai, specify polycarbonate bowls with metal guards against UV and impact.
Sizing an Air Preparation Unit for India
Size the unit to peak flow, not average. A line running 500 L per minute at 6 bar needs a body rated above that figure with margin. Mount the FRL close to the point of use and drain the bowl weekly in the monsoon. Pair it with our solenoid valve guide for a complete air circuit.
Frequently Asked Questions
What does an air preparation unit actually do?
It filters dust and water, regulates pressure to a stable value, and lubricates the air. Three stages protect every downstream actuator from premature wear.
Do I need a lubricator for 3C electronics lines?
Often no. Modern seals run dry, and oil mist harms sensors and cleanrooms. Use a filter-regulator only, and skip the lubricator for electronics.
How often should I change the filter element?
In dusty Indian plants, inspect monthly and replace the 5 micrometre element every three to six months. A clogged element drops pressure at the tool.
Is BIS certification required for FRL units?
FRL units fall under the pneumatic component scope BIS monitors for India. Confirm the current notified list with BIS India before import.
