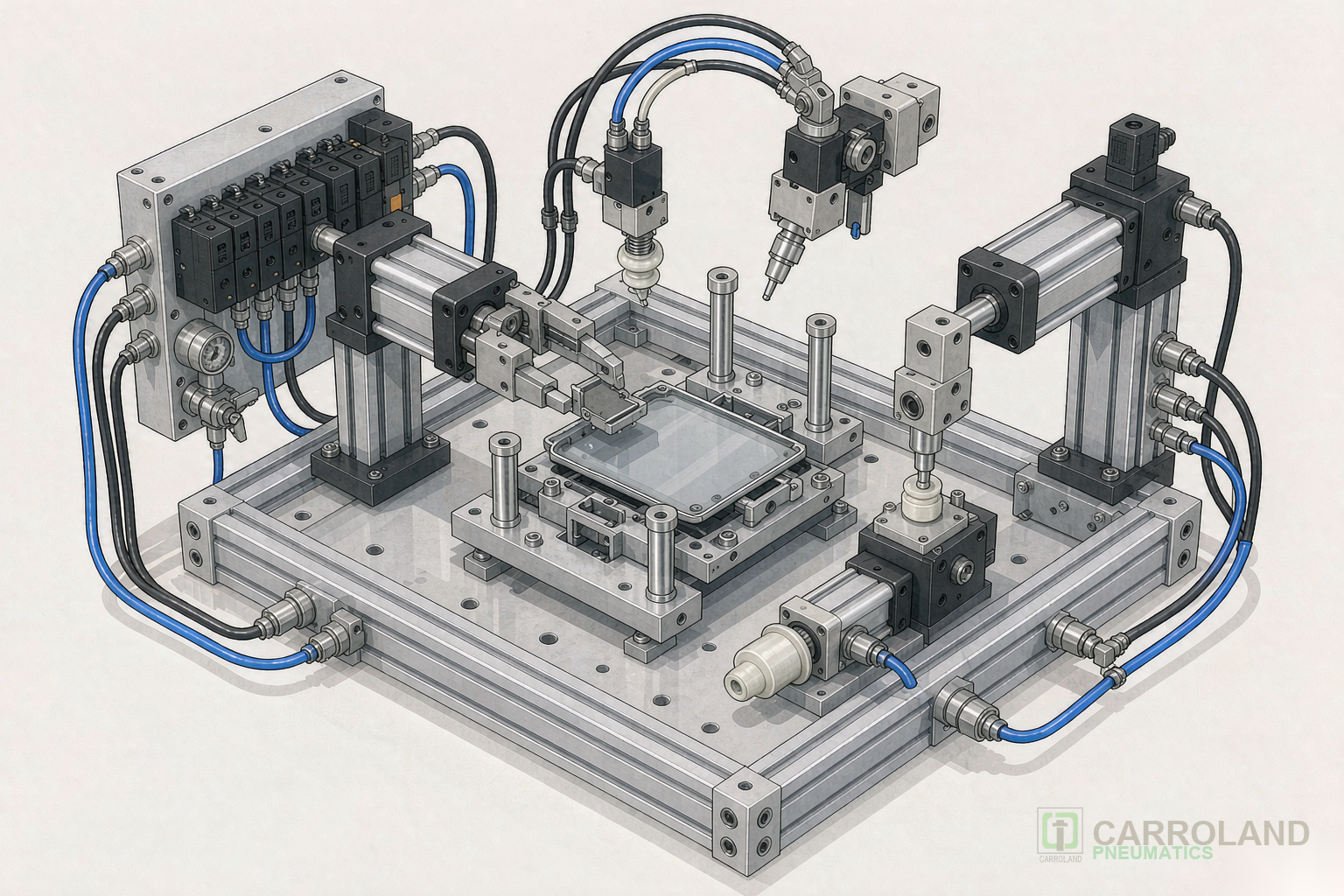

Pneumatic Systems for 3C automation: Fixtures, iPhone Lines & High-Speed Assembly
3C automation—computer, communication, and consumer electronics—pushes pneumatics to its precision limit. Cycle times under a second, cleanroom air, and micron repeatability define the game. This guide explains how pneumatic systems for 3C automation are specified, why Foxconn-certified lines demand a different bill of materials, and how to build fixtures that survive millions of cycles.
Why Pneumatics Still Wins in 3C
Despite the rise of servo electric actuators, compressed air remains the default for clamping, ejection, and pick-place in electronics because it is fast, clean, and cheap at volume. A pneumatic clamp closes in milliseconds and costs a fraction of an electric equivalent—decisive when a line runs 50 million units a year.
The 3C Pneumatic Stack
| Layer | Requirement | Why |
|---|---|---|
| Air prep | ISO 8573-1 Class 2, oil-free | Protect product & optics |
| Actuation | Compact ISO 6432 / 21287 | Fit tight fixtures |
| Control | 5/2 solenoid islands, IO-Link | Fast, diagnosable |
| Fixturing | Non-marring, repeatable ≤0.02 mm | No scratch on enclosures |
iPhone Production Line Requirements
An iPhone line is unforgiving: every clamp must be non-marring, every stroke timed to the beat, every component traceable. As a Foxconn-certified supplier for consumer electronics and 3C automation lines, Carroland builds pneumatic fixture systems to those tolerances—pairing European cylinder technology with China manufacturing since 1992 for cost-sensitive, high-volume output. Explore our iPhone Line pneumatic solutions for the full reference build.
Designing a Pneumatic Fixture for Assembly
- Map every clamp/eject to a cycle and a force budget.
- Use compact double-acting cylinders with adjustable cushioning to protect delicate housings.
- Route air through a Class 2 FRL and a valve island with per-station diagnostics.
- Add non-marring pads and hard stops; never let metal touch the product.
- Log cycle counts to predict seal replacement before failure.
Cycle-Time Math
Total station time = clamp close + process dwell + clamp open + transfer. At a 0.8 s target, your cylinder must fully stroke in <0.25 s—favour low-shift-time solenoids and short air lines. Our cylinder selection guide and valve guide cover the sizing in detail.
Cleanroom & ESD Considerations
Electronics lines need oil-free air (no lubricator) and often stainless or anodized bodies to limit particle shed. Route exhaust away from product, and ground the fixture to control ESD.
Common 3C Pneumatic Failures
- Contaminated air scratching lenses—fixed at the FRL, not the cylinder.
- Cushion too soft, housings shift—tighten end-of-stroke damping.
- Side loads from misaligned guides—add linear rails.
Related Guides
Frequently Asked Questions
Why use pneumatics in 3C electronics instead of electric actuators?
For clamping, ejection, and pick-place, pneumatic actuators are faster to close, far cheaper at the volumes 3C lines run, and clean enough for electronics when fed oil-free Class 2 air. Servo electric wins only where force profiling or positioning is critical.
What air quality does an iPhone production line need?
Typically ISO 8573-1 Class 2—0.1 µm particles, −40°C dewpoint, 0.1 mg/m³ oil—delivered oil-free to protect housings, lenses, and displays from contamination.
How fast can a pneumatic fixture cycle on an assembly line?
Well-specified compact cylinders with low-shift-time solenoids and short air lines stroke in under 0.25 s, fitting station times near 0.8 s. Cycle time is dominated by air-line length and valve shift time, not the cylinder itself.
What makes a supplier Foxconn-certified for iPhone lines?
Certification means the supplier’s pneumatic fixtures meet tight tolerances (repeatability ≤0.02 mm), non-marring contact, traceability, and volume-stable quality. Carroland has held this qualification since 1992, combining European cylinder technology with China manufacturing.
