Air Preparation Unit Guide: ISO 8573-1 Air Quality Classes for Pneumatic Systems
Compressed air ranks as the fourth utility in modern manufacturing, yet many engineers underestimate how much its quality impacts equipment life and operating cost. Contaminated air destroys pneumatic cylinders, clogs solenoid valves, and drives up energy bills. This article breaks down how ISO 8573-1 air quality classes define compressed air purity and how an air preparation unit (Filter-Regulator-Lubricator, or FRL) delivers clean, stable, and properly conditioned air to your pneumatic system. Whether you manage a 3C automation line or a food processing plant, matching the right ISO 8573-1 class to your application prevents equipment failure and eliminates the hidden costs of over-specification.
Untreated compressed air carries three primary contaminants that degrade pneumatic components over time:
- Solid particles (dust, rust, pipe scale) accelerate wear on cylinder seals and valve seats, causing premature leakage and force loss.
- Water vapor and liquid condensate corrode internal metal surfaces, freeze in cold environments, and wash away lubricants.
- Oil aerosols and vapors from lubricated compressors contaminate product surfaces, clog precision orifices, and degrade seals incompatible with hydrocarbons.
Without an air preparation unit delivering air at the correct ISO class, even premium pneumatic pressure regulator systems and actuators underperform. Field data from European manufacturing facilities shows that poor air quality increases pneumatic component failure rates by 2 to 5 times compared to systems with properly specified FRL units. Consequently, investing in the correct air preparation configuration early in system design prevents costly retrofits and unplanned downtime later.
Understanding ISO 8573-1:2010 Air Quality Classes
The international standard ISO 8573-1:2010 provides a unified framework for specifying compressed air purity. It classifies air quality across three independent contamination vectors: solid particles, water (measured by pressure dew point), and oil (total aerosol + vapor content). Each vector receives a class rating from 0 (most stringent, user-defined) to 9 (most lenient). A complete specification is written as ISO 8573-1 [Particles:Water:Oil], for example [1:2:1] for Class 1 particles, Class 2 water, and Class 1 oil.
Solid Particle Classes (P)
Particle classification limits the concentration of solid contaminants by size range. For precision pneumatic systems, Class 1 or 2 prevents seal damage and valve clogging.
| Class | 0.1–0.5 µm (particles/m³) | 0.5–1.0 µm (particles/m³) | 1.0–5.0 µm (particles/m³) | Typical Application |
|---|---|---|---|---|
| 0 | User-defined (stricter than 1) | User-defined | User-defined | Semiconductor, pharmaceutical aseptic |
| 1 | ≤ 20,000 | ≤ 400 | ≤ 10 | Medical devices, precision electronics |
| 2 | ≤ 400,000 | ≤ 6,000 | ≤ 100 | Food packaging, instrument air |
| 3 | Not specified | ≤ 90,000 | ≤ 1,000 | General automation, assembly lines |
| 4 | Not specified | Not specified | ≤ 10,000 | Pneumatic tools, material handling |
| 5 | Not specified | Not specified | ≤ 100,000 | Construction equipment, basic conveyors |
Water (Moisture) Classes (W)
Water classification uses pressure dew point (PDP) — the temperature at which water vapor condenses into liquid at a given pressure. Lower PDP means drier air, which prevents corrosion and freezing in cold environments.
| Class | Pressure Dew Point | Typical Application |
|---|---|---|
| 0 | User-defined (stricter than 1) | Critical pharmaceutical, electronics |
| 1 | ≤ -70°C (-94°F) | Semiconductor, high-precision optics |
| 2 | ≤ -40°C (-40°F) | Instrument air, food contact |
| 3 | ≤ -20°C (-4°F) | Outdoor lines, low-temperature automation |
| 4 | ≤ +3°C (+37°F) | General plant air, pneumatic tools |
| 5 | ≤ +7°C (+45°F) | General shop air with moderate risk |
| 6 | ≤ +10°C (+50°F) | Basic industrial applications |
Oil Classes (O)
Oil classification limits total oil content (aerosol + vapor) in milligrams per cubic meter. Class 0 and Class 1 prevent oil contamination from compromising product safety or damaging sensitive equipment.
| Class | Total Oil Content (mg/m³) | Typical Application |
|---|---|---|
| 0 | User-defined (stricter than 1) | Food contact, pharmaceutical |
| 1 | ≤ 0.01 | Breathing air, precision electronics |
| 2 | ≤ 0.1 | Paint spraying, sensitive instrumentation |
| 3 | ≤ 1.0 | General automation, CNC machines |
| 4 | ≤ 5.0 | Standard industrial pneumatics |
| 5 | ≤ 25 | Basic pneumatic tools, workshop air |
Matching ISO 8573-1 Classes to Pneumatic Applications
Selecting the correct air quality class requires balancing equipment protection against operational cost. Over-specifying air purity wastes energy and increases maintenance expense; under-specifying leads to accelerated wear and unplanned downtime. The following table maps common pneumatic applications to recommended ISO 8573-1 classes and the corresponding air preparation unit configuration.
| Application | ISO 8573-1 Class | Filter Rating | Dryer Type | Regulator Precision |
|---|---|---|---|---|
| Semiconductor / Cleanroom | [1:1:1] | 0.01 µm coalescing | Desiccant (-70°C PDP) | ±0.01 MPa |
| Food & Beverage Contact | [1:2:1] | 0.01 µm coalescing | Refrigerated or desiccant | ±0.02 MPa |
| Pharmaceutical (non-sterile) | [1:2:1] | 0.01 µm coalescing | Refrigerated (-40°C) | ±0.02 MPa |
| 3C Electronics Assembly | [2:3:2] | 5 µm standard | Refrigerated (-20°C) | ±0.05 MPa |
| Automotive Paint & Body | [2:2:2] | 5 µm standard | Refrigerated (-40°C) | ±0.05 MPa |
| General Automation / 3C Fixtures | [3:4:3] | 40 µm standard | Refrigerated (+3°C) | ±0.05 MPa |
| Pneumatic Tools / Workshop | [5:6:5] | 40 µm standard | None or cyclone separator | ±0.1 MPa |
For 3C automation lines — the core market for Carroland pneumatic fixture systems — a Class [3:4:3] specification meets most requirements. This protects cylinder seals and pneumatic pressure regulator diaphragms from particle damage while avoiding the energy penalty of over-drying. When fixtures handle sensitive electronic components (such as smartphone motherboards or display panels), upgrading to Class [2:3:2] eliminates oil vapor that could deposit on surfaces. For detailed guidance on sizing FRL units for your specific flow and pressure requirements, refer to our complete FRL air preparation unit sizing guide.
Air Preparation Unit Components: Filter, Regulator, Lubricator
An air preparation unit integrates three functions into a single modular assembly. Understanding each component helps you specify the right frl pneumatics configuration for your ISO 8573-1 target class.
Filter: The First Line of Defense

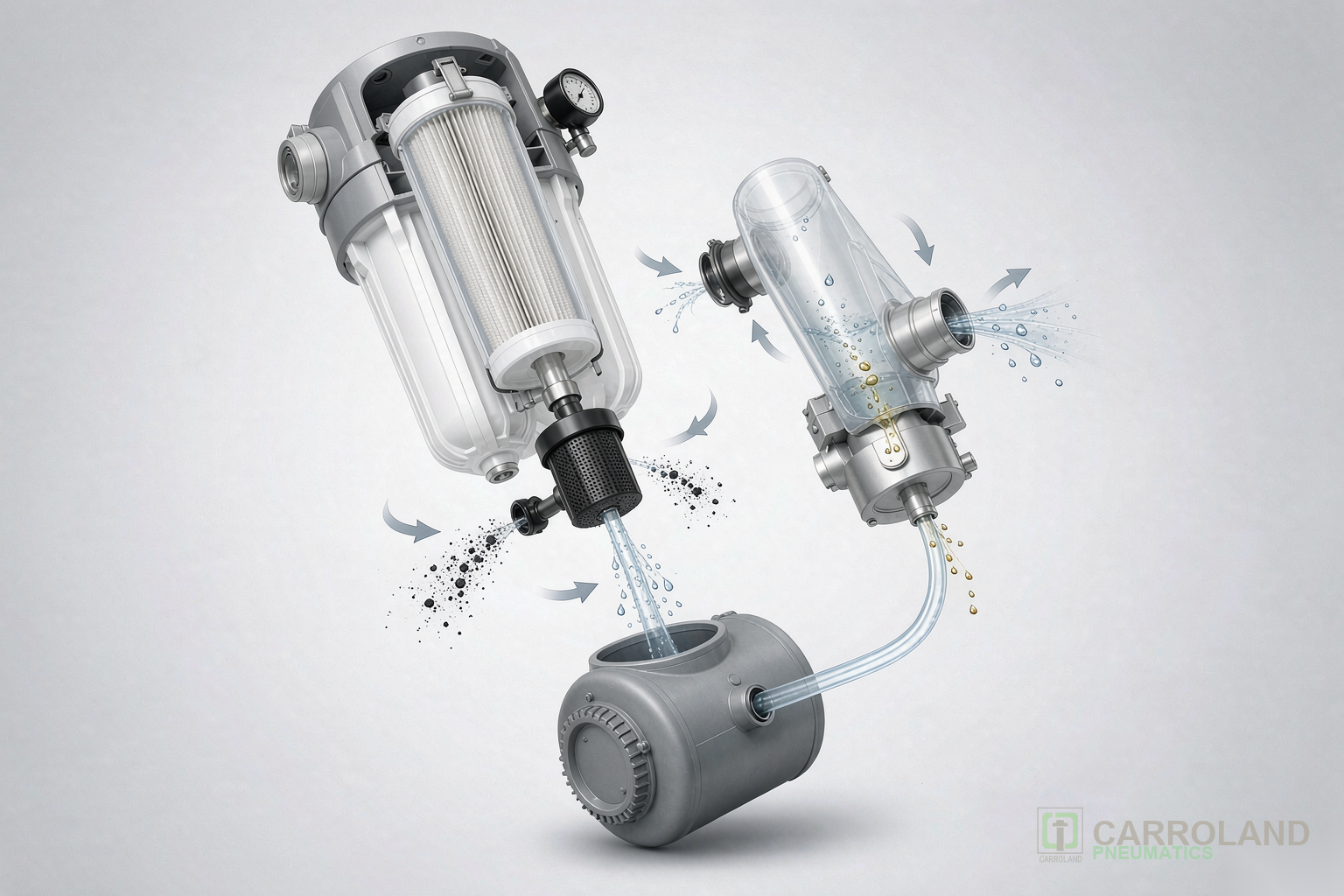

The filter removes solid particles and liquid water from the compressed air stream. Standard filters use centrifugal force to separate bulk water, followed by a sintered element (bronze or polymer) to capture particulates. For Class 1 or 2 particle requirements, a coalescing filter captures sub-micron aerosols and fine particles down to 0.01 µm. Key specification parameters include:
- Filtration rating: 40 µm for general pneumatics; 5 µm for precision instruments; 0.01 µm for critical applications
- Flow capacity: Must exceed the maximum air consumption of downstream equipment (typically 1.5× peak demand)
- Drain type: Manual for accessible installations; automatic for remote or unmanned systems
Regulator: Pressure Stability for Consistent Output
The pneumatic pressure regulator reduces and stabilizes incoming air pressure to the precise working pressure required by downstream equipment. Inconsistent pressure causes cylinders to exert variable force, leading to inconsistent clamping pressure in fixture systems. A high-quality regulator maintains output pressure within ±0.05 MPa even when inlet pressure fluctuates. For 3C automation fixtures requiring precise force control, select a regulator with a relief function that vents excess pressure when downstream demand drops. In addition, always pair your regulator with properly sized pneumatic cylinders and solenoid valves to maintain system-wide pressure stability.
Lubricator: Extending Component Life
The lubricator injects a controlled oil mist into the air stream, providing continuous lubrication to cylinders, valves, and actuators. Proper lubrication reduces friction by 40–60% and extends seal life significantly. However, lubricated air must never be used in food-contact or paint-spray lines — always split the air supply into separate lines for lubricated and non-lubricated applications.
Energy Efficiency and Cost Considerations
Over-specifying air quality is a common and expensive mistake. For example, a Class 1 particle filter creates approximately 7 PSI higher pressure drop than a Class 3 filter, forcing the compressor to work 15–20% harder. As a result, for a 50 HP compressor running 4,000 hours annually, this translates to approximately $1,200–$2,100 in additional electricity costs per year.
The following total cost of ownership (TCO) comparison illustrates the trade-off between initial filtration investment and long-term operating costs:
| Configuration | Initial Cost | Annual Energy | Annual Maintenance | 5-Year TCO |
|---|---|---|---|---|
| Over-specified (Class 1:1:1) | $8,500 | $2,800 | $1,200 | $28,500 |
| Correctly specified (Class 3:4:3) | $4,200 | $1,400 | $800 | $15,200 |
| Under-specified (Class 5:6:5) | $2,100 | $1,100 | $4,500 | $21,600 |
Data sourced from Atlas Copco compressed air system analysis and Festo industrial pneumatic guidelines. Correctly specifying air quality to the actual application requirements yields the lowest 5-year TCO while maintaining equipment reliability.
How to Test and Verify Your Compressed Air Quality
Compliance with ISO 8573-1 requires periodic testing using standardized measurement methods:
- Solid particles: ISO 8573-4 (laser particle counter) or ISO 8573-8 (mass concentration method)
- Water vapor: ISO 8573-3 (hygrometer or dew point sensor) for continuous monitoring
- Oil content: ISO 8573-2 (aerosol) + ISO 8573-5:2025 (vapor) combined for total oil measurement
For production facilities without in-house testing capability, third-party compressed air audits cost approximately $500–$1,500 per sampling point and provide ISO-compliant certificates. Meanwhile, in regulated industries (pharmaceutical, food), annual verification is typically mandatory under GMP or HACCP frameworks. Therefore, budgeting for periodic air quality testing should be part of any comprehensive pneumatic system maintenance plan.
FAQ: ISO 8573-1 and Air Preparation Units
What is the difference between ISO 8573-1 Class 0 and Class 1?
Class 0 is user-defined and must be stricter than Class 1. It does not mean zero contamination — instead, the purchaser and supplier agree on specific limits that exceed Class 1 requirements. Class 1 has fixed numerical limits (e.g., ≤ 0.01 mg/m³ oil). Class 0 is commonly specified for semiconductor and critical pharmaceutical applications.
Can a single FRL unit achieve ISO 8573-1 Class 1 for all three contaminants?
A single FRL unit can achieve Class 1 for particles and oil if equipped with a high-efficiency coalescing filter, but Class 1 for water (≤ -70°C dew point) requires a dedicated desiccant dryer upstream. Most complete air preparation unit systems combine multiple stages: pre-filter, refrigerated dryer, fine coalescing filter, and activated carbon filter for oil vapor.
How often should FRL filter elements be replaced?
Replacement intervals depend on operating conditions and air quality. In clean, dry environments, standard 40 µm filters last 8,000–12,000 hours. In dusty or humid conditions (common in Southeast Asian manufacturing), replacement may be required every 2,000–4,000 hours. Monitor pressure differential across the filter — when it exceeds 0.05 MPa, the element is saturated and must be replaced.
Does every pneumatic system need a lubricator?
No. Modern pre-lubricated (factory-sealed) cylinders and valves often operate without additional lubrication. However, high-speed or high-cycle applications (such as 3C fixture clamping cycles at 60+ strokes per minute) benefit from inline lubrication to prevent seal wear. Always check the component manufacturer’s specification — some seals degrade when exposed to lubricating oils.
What is the most common mistake when specifying an air preparation unit?
The most common error is sizing the FRL unit based on pipe diameter rather than actual air flow (CFM or L/min). An undersized unit creates excessive pressure drop, reducing cylinder force and wasting energy. Always calculate peak air consumption of all downstream devices, then select an FRL with a rated flow at least 1.5 times that value at your working pressure.
How does compressed air quality affect energy consumption?
Contaminated air causes pressure drops across clogged filters, increases internal friction in poorly lubricated components, and forces regulators to compensate for unstable pressure. Collectively, these factors can increase compressor energy consumption by 15–30%. Maintaining proper ISO 8573-1 air quality through a correctly specified air preparation unit pays for itself through reduced energy and maintenance costs.
