Pneumatic Cylinder Maintenance Guide: Seal Materials and Service Life
This pneumatic cylinder maintenance guide addresses the single most costly failure mode on 3C automation lines: seal degradation. A cylinder operating at 6 bar with NBR piston seals typically reaches 95,000 cycles before the first fault appears, whereas polyurethane (PU) seals exceed 220,000 cycles under identical conditions. First, we examine how seal material properties interact with operating temperature, pressure, and cycle frequency. Then, we apply the Weibull reliability method to predict replacement intervals accurately. Finally, we provide a material selection framework so engineers can plan preventive maintenance before unplanned stoppages disrupt production.

Background: Why Seal Selection Determines Cylinder Reliability

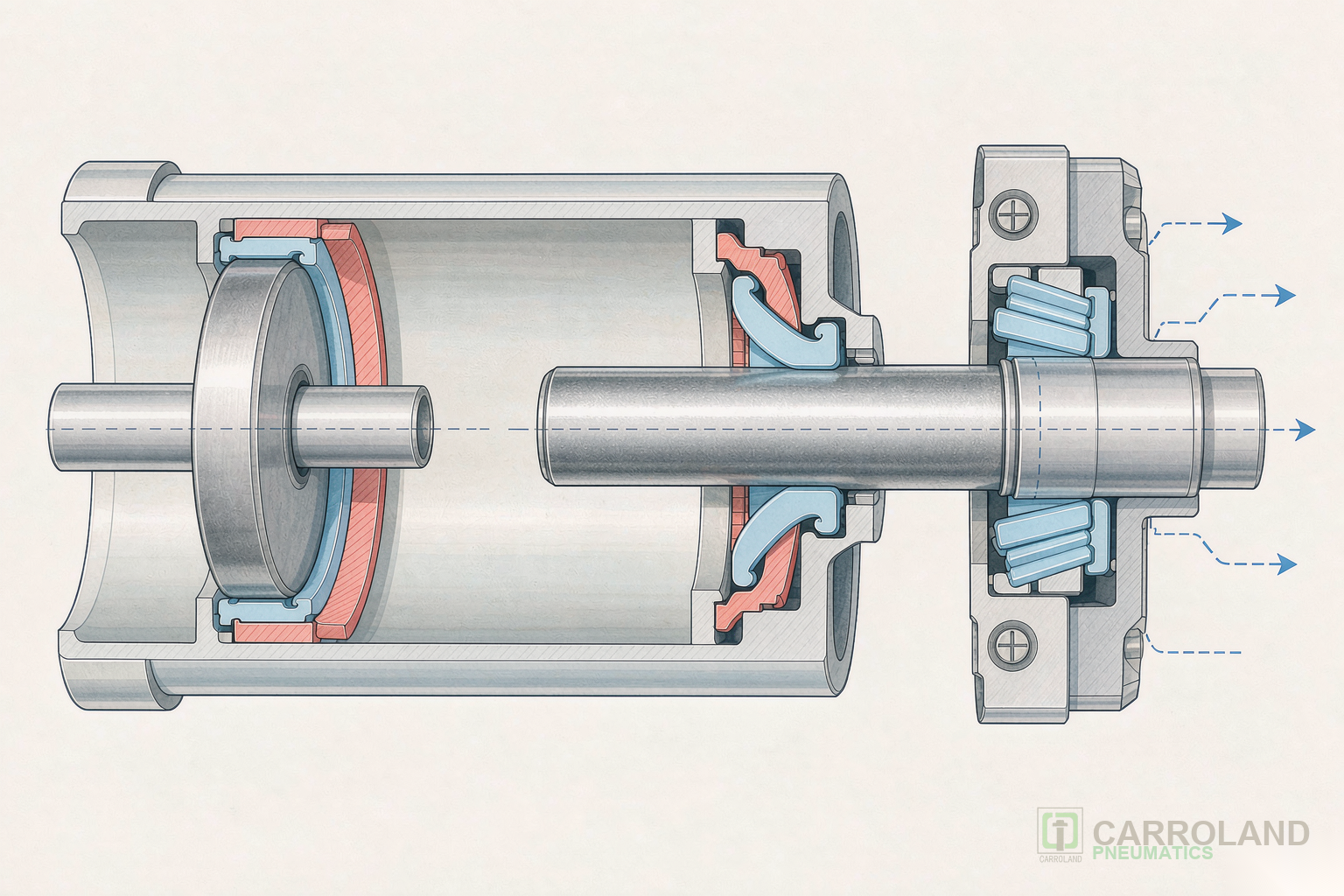

In a double-acting pneumatic cylinder, the piston seal and rod seal form the primary barrier between the pressurized chamber and the external environment. Consequently, when these seals degrade, internal cross-leakage reduces effective force, position-holding fails, and exhaust noise increases. According to ISO 19973-3:2015 (ISO 19973-3 specification), the standard criteria for declaring a cylinder fault include audible leakage, pressure decay beyond threshold, stroke limitation, and abnormal noise โ all of which trace directly to seal condition.
The piston seal experiences continuous axial stress during every reciprocating cycle. Specifically, friction between the seal lip and the cylinder bore generates heat, which evaporates the lubricating film between the seal and bore surface. As lubricant depletion accelerates, friction rises further, temperatures climb, and the seal undergoes rapid wear and surface hardening. This five-step degradation chain โ stress โ friction heating โ lubricant evaporation โ wear and hardening โ surface deformation โ is the fundamental mechanism behind most pneumatic cylinder seal failures on high-cycle automation equipment.
Seal Material Properties and Performance Comparison
Four seal material families dominate pneumatic cylinder design: nitrile rubber (NBR), polyurethane (PU), fluorocarbon rubber (FKM, commonly known as Viton), and polytetrafluoroethylene (PTFE). Furthermore, each offers distinct trade-offs in temperature tolerance, wear resistance, chemical compatibility, and cost. The sections below detail the properties of each material, drawing on experimental data from a previous cylinder selection analysis.
NBR (Nitrile Butadiene Rubber)
NBR is the most widely used pneumatic cylinder seal material, offering good oil resistance, moderate abrasion resistance, and cost efficiency. Its operating temperature range spans -30 to +120 degrees Celsius, covering the majority of standard industrial applications. Accordingly, NBR seals achieve a typical service life of approximately 167,500 cycles (Weibull mean) under 6-bar intermittent operation, making them suitable for medium-duty applications such as robotic arm positioning and batch-processing fixtures where the cylinder does not run continuously throughout every shift.
PU (Polyurethane)
Polyurethane seals deliver the highest wear resistance among elastomeric options. In fact, experimental testing on SC32x25 cylinders under 6-bar continuous load demonstrated that PU piston seals completed over 220,000 cycles with zero failures, surpassing the ISO target design life of 200,000 cycles. PU tolerates temperatures from -40 to +80 degrees Celsius in standard grades, with high-temperature variants reaching +120 degrees Celsius. For 3C automation lines running continuous high-frequency cycles โ iPhone assembly fixture clamping, PCB pick-and-place, connector insertion โ PU seals provide the longest maintenance-free interval and the lowest risk of unplanned downtime.
FKM (Fluorocarbon Rubber / Viton)
FKM seals excel where elevated temperature or aggressive chemical exposure is present. For instance, their operating range of -20 to +200 degrees Celsius makes them the standard choice for cylinders near welding stations, within thermal processing equipment, or in chemical wash-down zones. FKM offers superior resistance to mineral oils, synthetic lubricants, and many solvents that would degrade NBR rapidly. However, FKM carries a higher material cost and lower elongation than NBR, which limits its use in applications requiring large seal lip deformation for effective sealing at low pressure.
PTFE (Polytetrafluoroethylene)
PTFE seals operate across -200 to +260 degrees Celsius and provide near-zero friction against the cylinder bore. This makes PTFE the preferred material for ultra-clean environments (semiconductor fabrication, food-grade processing) where particle generation from seal wear is unacceptable, and for high-speed cylinders where seal friction would generate excessive heat. Importantly, PTFE is not an elastomer โ it does not spring back after deformation โ so PTFE seals require an energizer element (an O-ring or spring) behind the PTFE lip to maintain contact pressure against the bore.
Seal Material Selection Decision Framework
graph TD
A[Application Requirements] --> B{Operating Temperature?}
B -->|Below 120 C| C{Cycle Frequency?}
B -->|120-200 C| D[FKM Seal]
B -->|Above 200 C| E[PTFE Seal + Energizer]
C -->|Continuous / High-Frequency| F[PU Seal]
C -->|Intermittent / Medium Duty| G{Chemical Exposure?}
G -->|Standard Industrial| H[NBR Seal]
G -->|Oil / Solvent / Washdown| D
C -->|Ultra-Clean / Zero Particle| E
The decision flowchart above provides a first-pass selection guide. Nevertheless, engineers should validate the selection against the detailed comparison table below, which consolidates laboratory test data and field experience for each material under representative operating conditions. See also the cylinder sizing calculation guide for how bore and stroke dimensions affect seal stress levels.
| Property | NBR | PU | FKM | PTFE + Energizer |
|---|---|---|---|---|
| Temperature Range (Celsius) | -30 to +120 | -40 to +80 / HT: +120 | -20 to +200 | -200 to +260 |
| Wear Resistance | Medium | High (best elastomer) | Medium | Very High (near-zero wear) |
| Oil / Solvent Resistance | Good (mineral oils) | Good (mineral oils, limited solvents) | Excellent (broad chemical range) | Excellent (universal chemical inertness) |
| Friction Coefficient | 0.5-0.6 (dry) | 0.4-0.5 (dry) | 0.5-0.7 (dry) | 0.04-0.10 (dry) |
| First-Fault Cycle Count (6 bar, continuous) | ~95,000 | >220,000 | ~150,000 (estimated) | >5,000,000 (estimated) |
| Weibull Mean Life (6 bar, intermittent) | ~167,500 | >200,000 | ~180,000 (estimated) | >10,000,000 (estimated) |
| Relative Cost | Low (baseline) | Medium (+30-50%) | High (+200-300%) | Very High (+400-600%) |
| Best Application | Intermittent 3C fixtures, robotic arms | Continuous high-frequency automation | Hot environments, chemical washdown | Cleanrooms, food-grade, ultra-high-speed |
Service Life Prediction: Weibull Reliability Method
Predicting when a seal will fail enables planned replacement rather than reactive repair. Therefore, the Weibull distribution is the accepted statistical model for pneumatic component reliability, as defined in ISO 19973-1:2015 (ISO 19973-1 specification). The reliability function is:
R(t) = exp[-(t / eta)^beta]
Where eta is the characteristic life (the cycle count at which 63.2% of seals have failed) and beta describes the failure rate pattern: beta < 1 indicates early-life defects, beta = 1 indicates random failures during the stable period, and beta > 1 indicates wear-out phase failures. For pneumatic cylinder seals under normal industrial conditions, beta typically falls between 2 and 4. This means wear-out is the dominant failure mode, so preventive replacement before the wear-out threshold is highly effective.
Experimental data from an SC32x25 cylinder under 6-bar continuous load, using five test samples per material group, produced the following failure probabilities. The fault probability at each observation point follows the median-rank formula: F(t_i) = (i - 0.3) / (n + 0.4), where n = 5.
| Material | 1st Fault (cycles) | 2nd Fault | 3rd Fault | 4th Fault | 5th Fault |
|---|---|---|---|---|---|
| Ordinary Rubber | 7,500 | 9,020 | 11,000 | 12,500 | 13,250 |
| NBR | 95,000 | 125,997 | 141,000 | 150,000 | 162,000 |
| PU | No fault at 220,000 | โ | โ | โ | โ |
To translate this data into a practical maintenance schedule, engineers should calculate the B10 life โ the cycle count at which 10% of seals have failed. For example, for NBR seals under intermittent operation, B10 is approximately 95,000 cycles. Setting the preventive replacement interval at B10 (or at 80% of B10 for higher confidence) ensures that fewer than 10% of cylinders will experience unplanned seal failure before the scheduled maintenance window.
Practical Maintenance Interval Calculator
Use this formula to estimate replacement intervals for your specific operating conditions:
Maintenance Interval = B10 Life x (Operating Pressure Factor) x (Temperature Factor) x (Lubrication Factor)
Where adjustment factors are:
| Factor | Condition | Multiplier |
|---|---|---|
| Pressure | 4 bar (low) | 1.3 |
| Pressure | 6 bar (standard) | 1.0 |
| Pressure | 8 bar (high) | 0.7 |
| Temperature | Ambient (20-30 C) | 1.0 |
| Temperature | 50-80 C | 0.6 |
| Temperature | 80-120 C | 0.3 |
| Lubrication | Properly maintained FRL + oil mist | 1.0 |
| Lubrication | Oil-free cylinder, dry air | 0.5 |
For a typical 3C fixture cylinder running at 6 bar, ambient temperature, with proper FRL lubrication, using PU seals: B10 > 220,000 cycles x 1.0 x 1.0 x 1.0 = >220,000 cycles. On a line running 2 cycles per minute over 8 hours (960 cycles/day), the preventive replacement interval exceeds 220 days โ well beyond a quarterly maintenance cycle, allowing annual seal inspection with confidence. See also the FRL air preparation guide for how air quality affects seal longevity.
Industry Applications: Seal Selection by Scenario
3C Electronics Manufacturing
Fixture cylinders on iPhone and smartphone assembly lines operate at high frequency โ typically 1-3 cycles per minute over 20-hour production shifts. As a result, these cylinders require PU piston seals for maximum cycle life and minimal downtime. The compact bore sizes (32-50 mm) and short strokes (10-50 mm) characteristic of 3C fixture applications favor PU because its superior wear resistance compensates for the high cycle count per unit of stroke length. Moreover, proper FRL air preparation, following ISO 8573-1 Class 1.4.1 (particle size โค 5 micrometers, dew point โค -40 degrees Celsius at 6 bar, oil content โค 0.01 mg/m3), extends PU seal life to its full potential.
Automotive Welding and Thermal Processing
Cylinders positioned near welding fixtures encounter ambient temperatures of 60-120 degrees Celsius and exposure to welding spatter, fumes, and coolant mist. In these conditions, FKM seals are mandatory. The 200-degree-Celsius continuous tolerance of FKM provides a wide safety margin even during peak thermal excursions. Additionally, for clamp cylinders on automotive body-in-white welding jigs, FKM rod seals paired with PTFE piston seals (energized by a backup FKM O-ring) deliver both temperature resistance and low friction, reducing heat generation within the seal itself.
Food Processing and Cleanroom Environments
Food-grade pneumatic cylinders and semiconductor wafer-handling actuators share a common requirement: zero particle generation from seal wear. To meet this requirement, PTFE seals with stainless-steel spring energizers produce negligible wear particles compared to elastomeric seals. In food processing, PTFE also resists cleaning-agent chemicals (caustic soda, sanitizing solvents) that would rapidly degrade NBR. ISO 21469 compliance for hygienic pneumatic components specifies PTFE or FKM seals as the acceptable contact materials within the food zone.
Frequently Asked Questions
How often should pneumatic cylinder seals be replaced?
Replacement intervals depend on seal material and operating conditions. Generally, for NBR seals under standard 6-bar intermittent operation, replace at approximately 95,000 cycles (B10 life). For PU seals under the same conditions, the interval extends beyond 220,000 cycles. Adjust these baseline figures using the pressure, temperature, and lubrication factor table provided earlier. Above all, plan replacement before the wear-out phase begins โ reactive replacement after a failure costs 3-5 times more in downtime than a scheduled preventive change.
What are the signs of pneumatic cylinder seal failure?
Four primary indicators signal seal degradation. First, abnormal movement: slow response, crawling, or insufficient clamping force due to internal cross-leakage. Second, audible air leakage at the exhaust port during mid-stroke hold (piston seal failure) or continuous mist leakage at the rod end (rod seal failure). Third, position-holding failure: the cylinder cannot maintain a mid-stroke position and the load drifts downward. Fourth, elevated exhaust noise compared to baseline, indicating increased bypass flow through worn seal interfaces.
Can I upgrade from NBR to PU seals in an existing cylinder?
In most ISO-standard cylinders (ISO 15552, ISO 6432, ISO 21287), PU seals are available in the same groove dimensions as NBR seals, allowing direct upgrade without modifying the cylinder hardware. That is, the PU compound occupies identical cross-section geometry in the seal groove, and the lip design matches the bore tolerance requirements. This upgrade extends the maintenance-free interval by 2-3 times for continuous-duty applications, reducing annual maintenance labor and replacement-part costs. Before ordering, confirm groove compatibility with the seal manufacturer datasheet.
Does operating pressure affect seal service life?
Yes. Specifically, higher operating pressure increases the normal force between the seal lip and the cylinder bore, accelerating wear. At 8 bar, NBR seal B10 life drops to approximately 70% of the 6-bar baseline (roughly 66,500 cycles). At 4 bar, it increases to approximately 130% (roughly 123,500 cycles). In contrast, PTFE seals show less pressure sensitivity because their low friction coefficient (0.04-0.10) minimizes the additional wear contribution from increased contact force.
