Industrial Pneumatic Components ยท JTXB and JTXU Series Guided Table Cylinders

JTXB and JTXU Series Guided Table Cylinders

JTXB and JTXU Series Guided Table Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

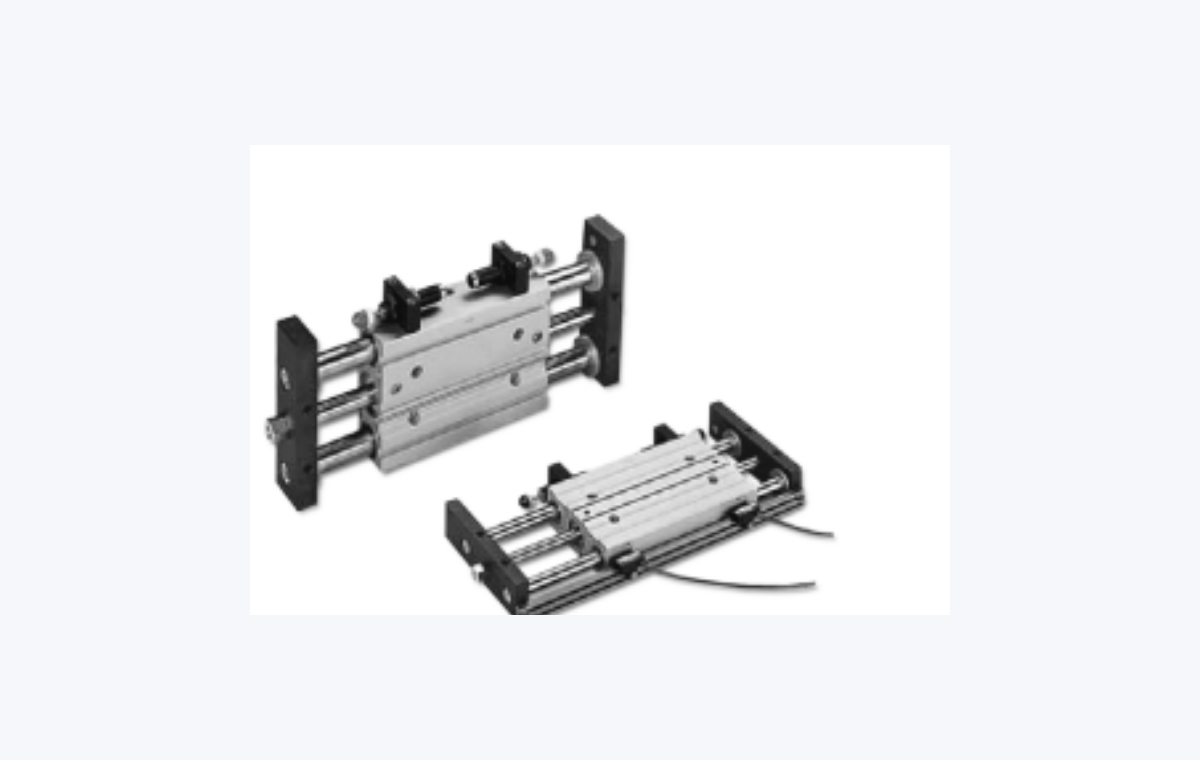

JTXB Guided Table Cylinder โ€” Carroland Pneumatics
Select model
JTXB and JTXU Series Guided Table Cylinders

JTXB Guided Table Cylinder

Double-acting guided table cylinder for compact linear positioning.

Bore Diameter16, 20, 25, 32, 40, 50, 63 mm
Stroke50-250 mm, depending on bore
Operation ModeDouble acting, guided table
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter16, 20, 25, 32, 40, 50, 63 mm
Stroke50-250 mm, depending on bore
Operation ModeDouble acting, guided table
Working MediumAir
Operating Pressure Range1.5-7 kgf/cm2 (150-700 kPa)
Operating Temperature Range0-60 C
