Industrial Pneumatic Components ยท JTB and JTU Series Three-Rod Guided Cylinders

JTB and JTU Series Three-Rod Guided Cylinders

JTB and JTU Series Three-Rod Guided Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

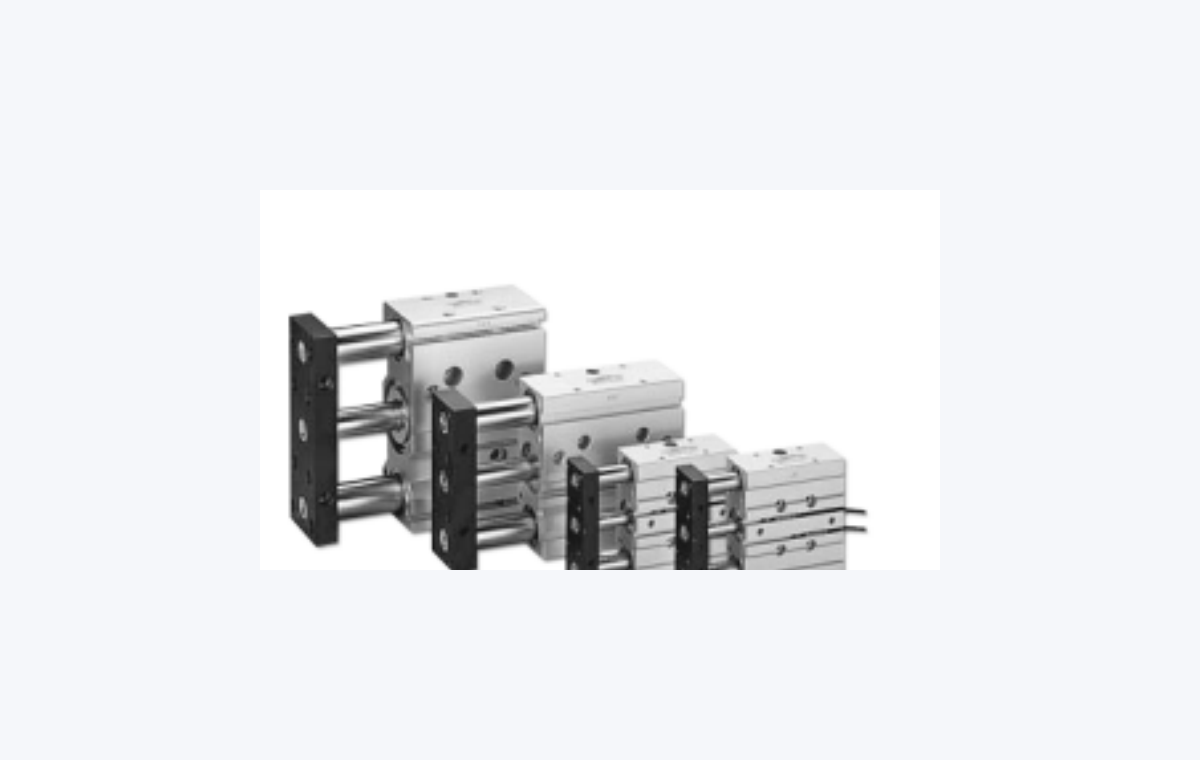

JTB Three-Rod Guided Cylinder โ€” Carroland Pneumatics
Select model
JTB and JTU Series Three-Rod Guided Cylinders

JTB Three-Rod Guided Cylinder

Double-acting guide-rod cylinder for stable linear automation motion.

Bore Diameter10, 16, 20, 25, 32, 40, 50, 63 mm
Stroke25-250 mm, depending on bore
Operation ModeDouble acting, three-rod guided
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter10, 16, 20, 25, 32, 40, 50, 63 mm
Stroke25-250 mm, depending on bore
Operation ModeDouble acting, three-rod guided
Working MediumAir
Operating Pressure Range1.5-7 kgf/cm2 (150-700 kPa)
Operating Temperature Range0-60 C
