Industrial Pneumatic Components ยท JSTX Series Twin-Rod Slide Cylinders

JSTX Series Twin-Rod Slide Cylinders

JSTX Series Twin-Rod Slide Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

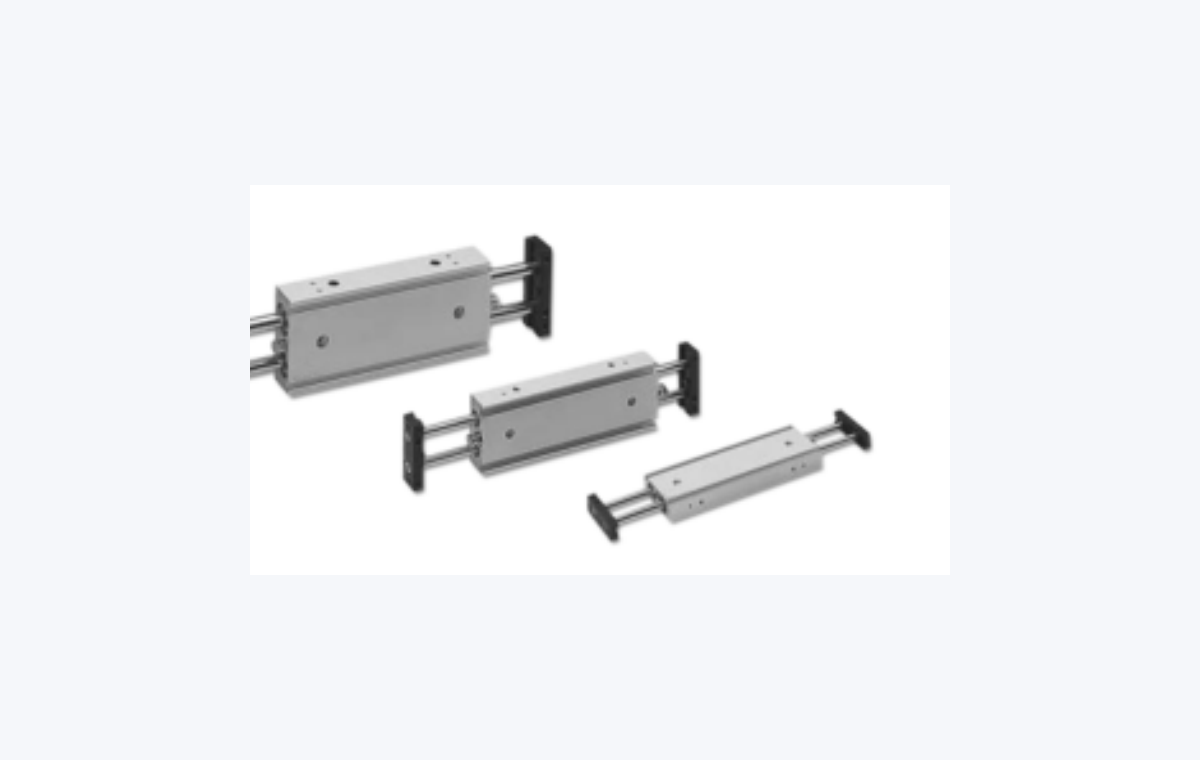

JSTX Twin-Rod Slide Cylinder โ€” Carroland Pneumatics
Select model
JSTX Series Twin-Rod Slide Cylinders

JSTX Twin-Rod Slide Cylinder

Double-acting slide cylinder with twin rods for compact guided motion.

Bore Diameter10, 16, 20, 25 mm
Stroke10-150 mm, depending on bore
Operation ModeDouble acting, twin-rod slide
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter10, 16, 20, 25 mm
Stroke10-150 mm, depending on bore
Operation ModeDouble acting, twin-rod slide
Working MediumAir
Operating Pressure Range1-7 kgf/cm2 (100-700 kPa)
Operating Temperature Range-10 to 60 C
