Industrial Pneumatic Components ยท JMQX Series Compact Slide Cylinders

JMQX Series Compact Slide Cylinders

JMQX Series Compact Slide Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

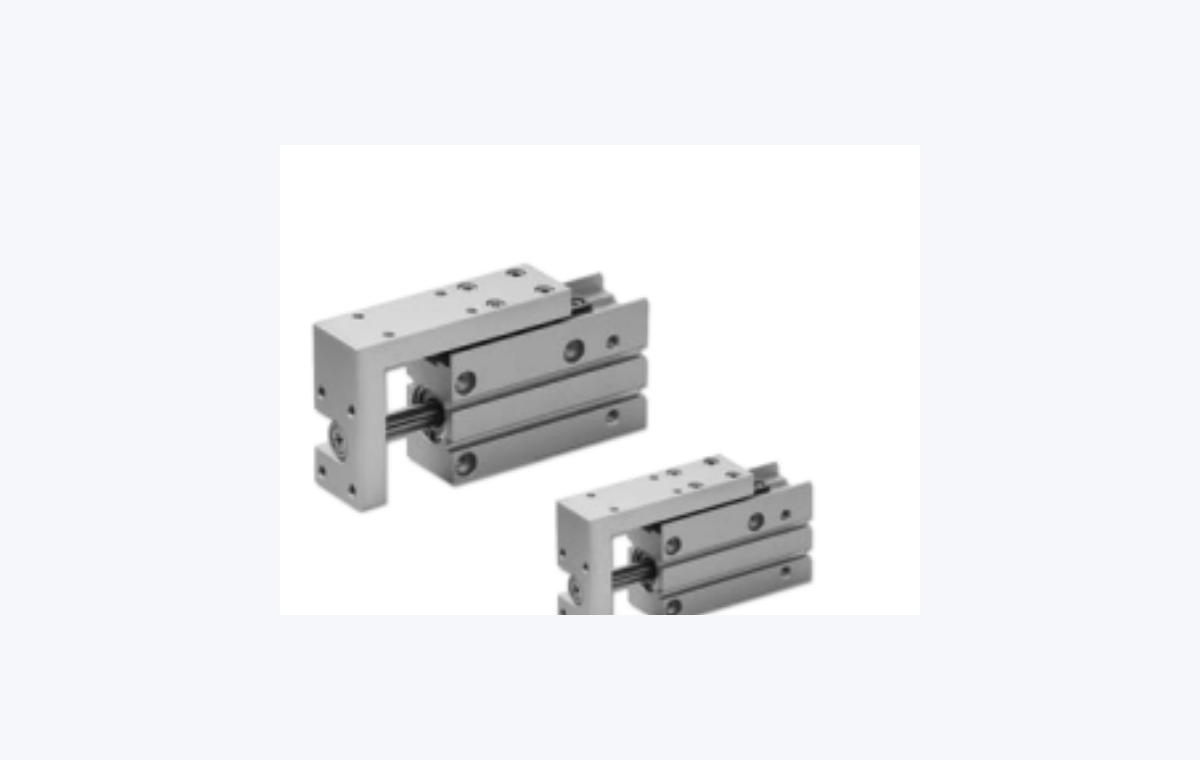

JMQX Compact Slide Cylinder โ€” Carroland Pneumatics
Select model
JMQX Series Compact Slide Cylinders

JMQX Compact Slide Cylinder

Double-acting compact slide cylinder for space-constrained automation.

Bore Diameter6, 10, 16, 20 mm
Stroke5-60 mm, depending on bore
Operation ModeDouble acting, compact slide
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter6, 10, 16, 20 mm
Stroke5-60 mm, depending on bore
Operation ModeDouble acting, compact slide
Working MediumAir
Operating Pressure Range1.5-8.5 kgf/cm2 (150-850 kPa)
Operating Temperature Range0-60 C
