Industrial Pneumatic Components ยท JMDX and JMDXL Series Twin-Rod Table Cylinders

JMDX and JMDXL Series Twin-Rod Table Cylinders

JMDX and JMDXL Series Twin-Rod Table Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

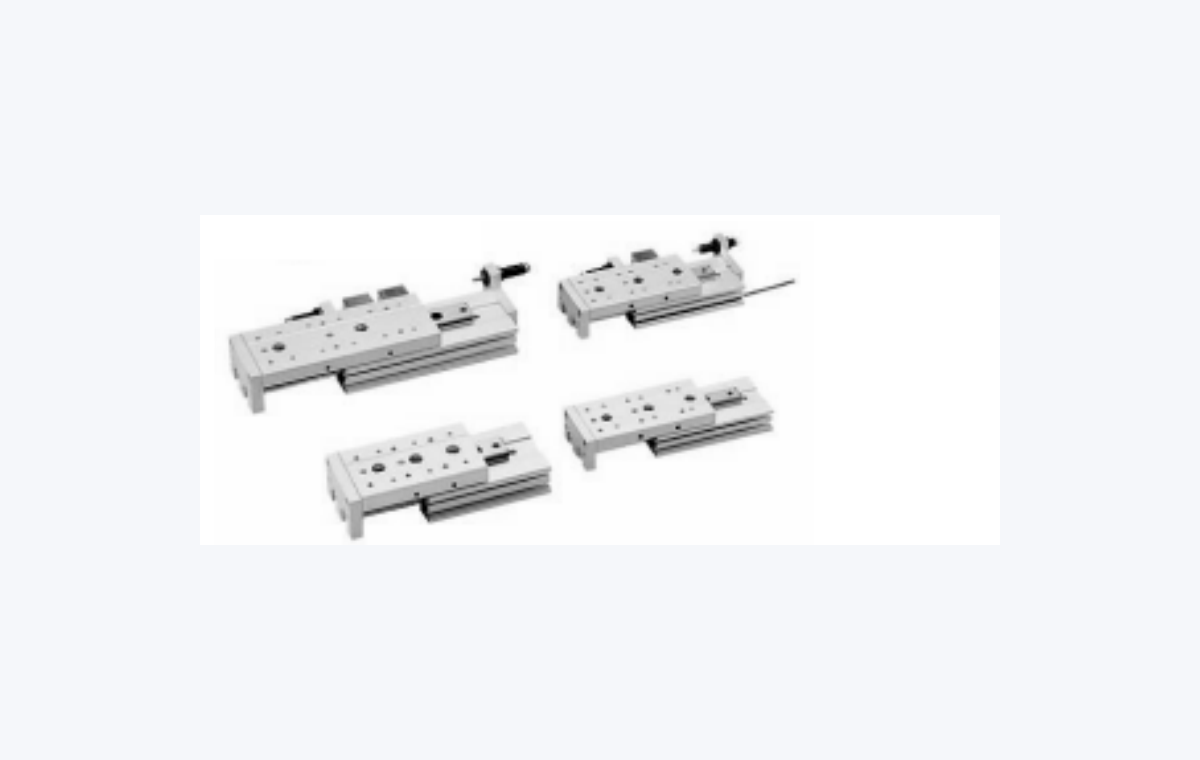

JMDX Twin-Rod Table Cylinder โ€” Carroland Pneumatics
Select model
JMDX and JMDXL Series Twin-Rod Table Cylinders

JMDX Twin-Rod Table Cylinder

Double-acting inner-guide twin-rod table cylinder for compact automation.

Bore Diameter6, 8, 12, 16, 20, 25 mm
Stroke10-150 mm, depending on bore
Operation ModeDouble acting, inner-guide twin rod
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter6, 8, 12, 16, 20, 25 mm
Stroke10-150 mm, depending on bore
Operation ModeDouble acting, inner-guide twin rod
Working MediumAir
Operating Pressure Range1-8.5 kgf/cm2 (100-850 kPa)
Operating Temperature Range0-60 C
