Industrial Pneumatic Components ยท JTSB and JTSU Series Guided Slide Cylinders

JTSB and JTSU Series Guided Slide Cylinders

JTSB and JTSU Series Guided Slide Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

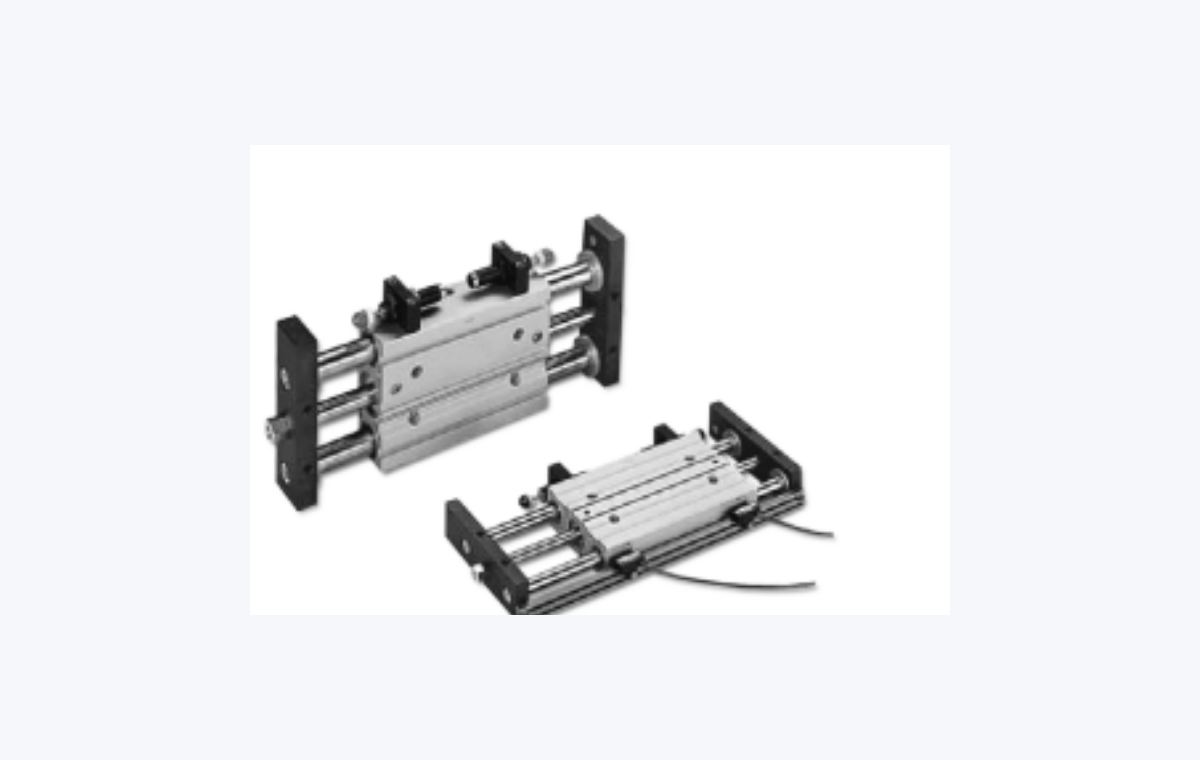

JTSB Guided Slide Cylinder โ€” Carroland Pneumatics
Select model
JTSB and JTSU Series Guided Slide Cylinders

JTSB Guided Slide Cylinder

Double-acting guided slide cylinder for linear automation fixtures.

Bore Diameter10, 16, 20, 25, 32, 40, 50, 63 mm
Stroke25-250 mm, depending on bore
Operation ModeDouble acting, guided slide
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter10, 16, 20, 25, 32, 40, 50, 63 mm
Stroke25-250 mm, depending on bore
Operation ModeDouble acting, guided slide
Working MediumAir
Operating Pressure Range1.5-7 kgf/cm2 (150-700 kPa)
Operating Temperature Range0-60 C
