Industrial Pneumatic Components ยท JTDX Series Twin-Rod Cylinders

JTDX Series Twin-Rod Cylinders

JTDX Series Twin-Rod Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

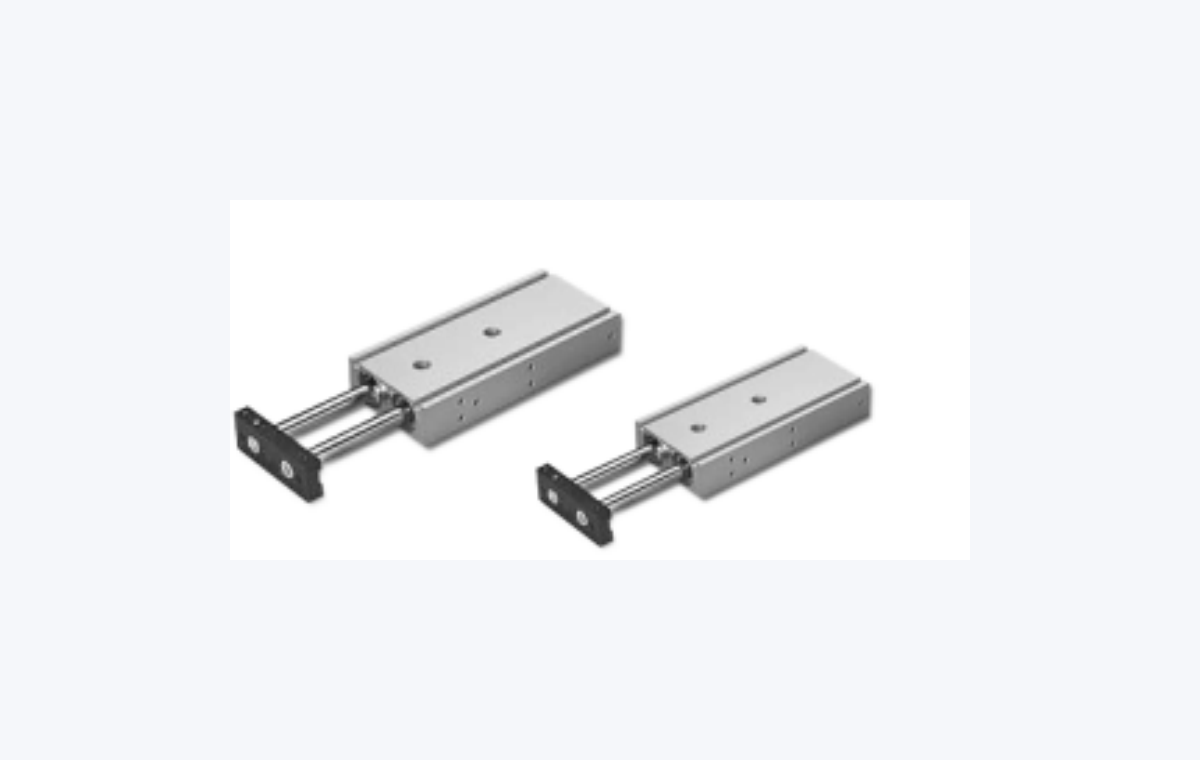

JTDX Twin-Rod Cylinder โ€” Carroland Pneumatics
Select model
JTDX Series Twin-Rod Cylinders

JTDX Twin-Rod Cylinder

Double-acting twin-rod cylinder for guided linear automation motion.

Bore Diameter10, 16, 20, 25 mm
Stroke10-150 mm, depending on bore
Operation ModeDouble acting, twin rod
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter10, 16, 20, 25 mm
Stroke10-150 mm, depending on bore
Operation ModeDouble acting, twin rod
Working MediumAir
Operating Pressure Range1-8.5 kgf/cm2 (100-850 kPa)
Operating Temperature Range0-60 C
