Pneumatic Cylinder for Packaging Machine: Selection, Sizing & Maintenance

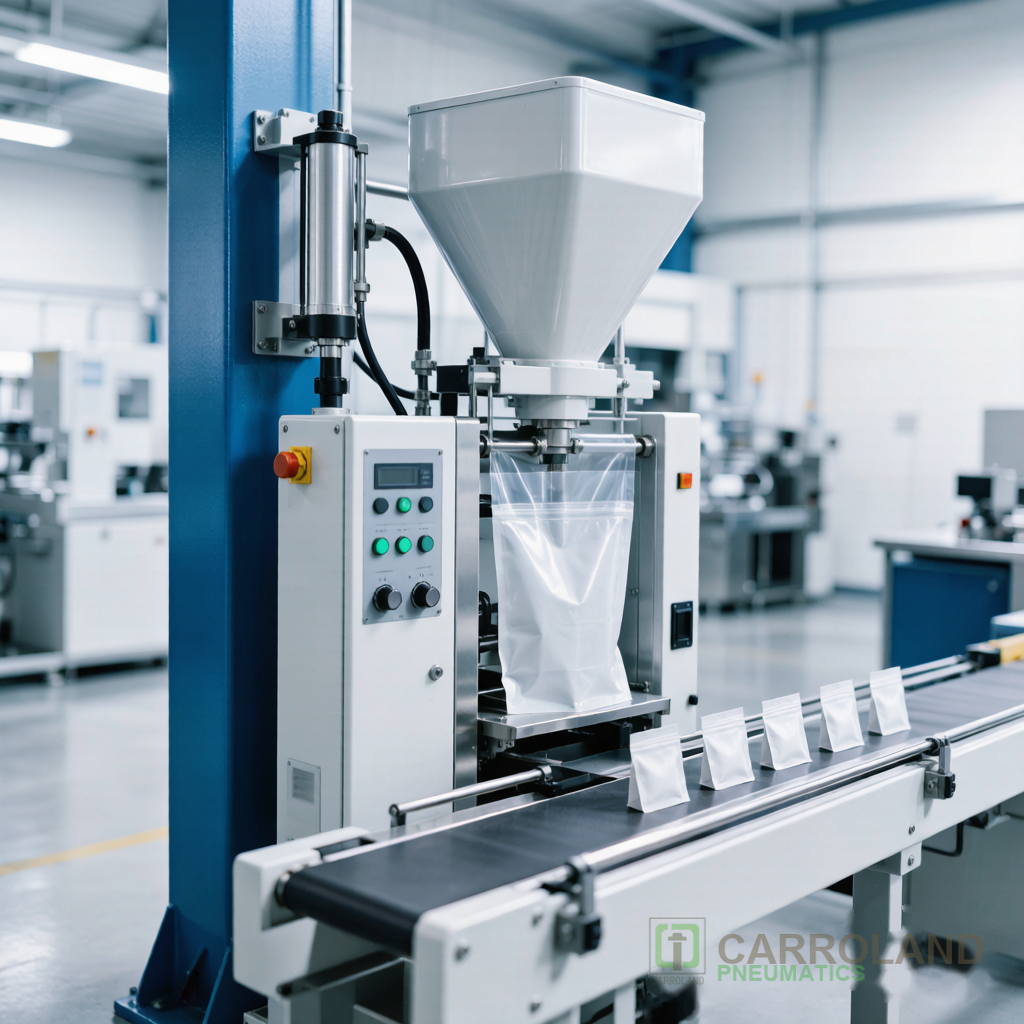

Packaging lines run at speeds that make mechanical cams and electric actuators look slow. A pneumatic cylinder for packaging machine duties converts compressed air into fast, repeatable linear motion for forming, filling, sealing, cutting and ejecting pouches, cartons and trays. Carroland supplies ISO 15552 tie-rod cylinders, compact guided cylinders and rodless actuators to OEMs that build vertical form-fill-seal (VFFS), flow-wrapper and cartoning equipment. Our European Technology · China Manufacturing · Since 1992 platform delivers bore sizes from 16 mm to 100 mm, stroke lengths up to 1,000 mm and operating pressures up to 10 bar, with Foxconn-certified production discipline for 3C and food-packaging automation. For hygienic stainless-steel designs that share the same mounting footprint, see our pneumatic cylinder for food processing range.

Where Pneumatic Cylinders Sit in Packaging Machinery

Packaging machines sequence dozens of short-stroke motions every cycle. The most common pneumatic tasks are:

• Film pull and registration — a rodless or compact cylinder advances packaging film by a precise length, often 50–200 mm per index.
• Forming collar and plow actuation — a 40–63 mm bore cylinder shapes flat film into a tube around the product funnel.
• Jaw sealing and cutting — opposing cylinders close heated jaws at 0.3–0.6 MPa for 150–400 ms, then open instantly.
• Product ejection and rejection — a short-stroke 25 mm bore cylinder diverts out-of-spec packs into a reject bin.
• Carton flap folding — guided cylinders fold top and side flaps before glue or tape application.

Each motion is intermittent, so the actuator spends most of its time either fully extended or fully retracted. This on/off logic fits pneumatic cylinders better than servos in cost-sensitive machinery.

Sizing a Pneumatic Cylinder for Packaging Machine Motion

Force follows the piston area and supply pressure. For a 63 mm bore cylinder at 0.6 MPa, the theoretical push force is roughly 1,870 N (F = π × 31.5² × 0.6). Because the return stroke loses the rod area, a 20 mm rod reduces pull force to about 1,680 N. Engineers add a 25–30% safety margin to cover seal friction, load inertia and pressure drops in the FRL unit.

Speed control matters on packaging lines. A jaw-sealing cylinder that slams closed at 0.8 m/s will tear film or damage heaters. We mount meter-out flow controls on the exhaust ports and specify cushioned cylinders or external shock absorbers for strokes over 300 mm. For film-registration accuracy of ±0.5 mm, we pair the cylinder with a hard stop, magnetic switch and a short brake stroke.

Hygiene and Material Considerations

Food and pharmaceutical packaging machines must tolerate wash-down cycles. We specify cylinders with stainless-steel or hard-anodized aluminum barrels, polyurethane rod wipers and food-grade NSF-H1 grease. In high-humidity pouch-filling areas, we add water separators and specify FRL units with 40 μm filtration and 0.3 MPa minimum regulated pressure to prevent condensation from reaching the actuator.

Why Carroland for Packaging OEMs

Carroland produces cylinders with interchangeable ISO 15552 mounting dimensions, so machine builders can drop our units into existing frames without redesigning brackets. We also offer rod scrapers for dusty paperboard environments, low-friction seals for high-speed indexing and magnetic piston rings for reliable position feedback. Lead time for standard packaging-machine cylinders is 10–15 working days from our Shenzhen facility, with sample quantities available in 5–7 days for prototype validation. For bore sizing and ISO 15552 force-derate math, follow our ISO 15552 bore and stroke sizing guide.

FAQ

What bore size is best for a jaw-sealing cylinder?

A 50–63 mm bore at 0.5–0.7 MPa supplies enough force for most plastic-film sealing jaws, while keeping the actuator compact enough to fit inside the machine guard.

How do I stop a packaging cylinder from slamming?

Install meter-out flow controls on both exhaust ports and select a cylinder with built-in end cushioning or add external shock absorbers for strokes longer than 150 mm.

Can pneumatic cylinders run 24/7 on a packaging line?

Yes, with proper filtration, lubrication-free seals and a predictive seal-replacement interval of 5–10 million cycles, depending on speed and contamination exposure.

{
