An FRL unit conditions compressed air before it reaches valves and cylinders — filtering contaminants, stabilizing pressure, and (where needed) adding lubrication. Reliable air preparation is especially important on Indian shop floors with variable supply quality. Carroland Pneumatics, an ISO 9001-certified pneumatic components manufacturer established in 1992 and a Foxconn-certified supplier for iPhone production-line clamping components, supplies FRL units and downstream actuators to Indian plants.

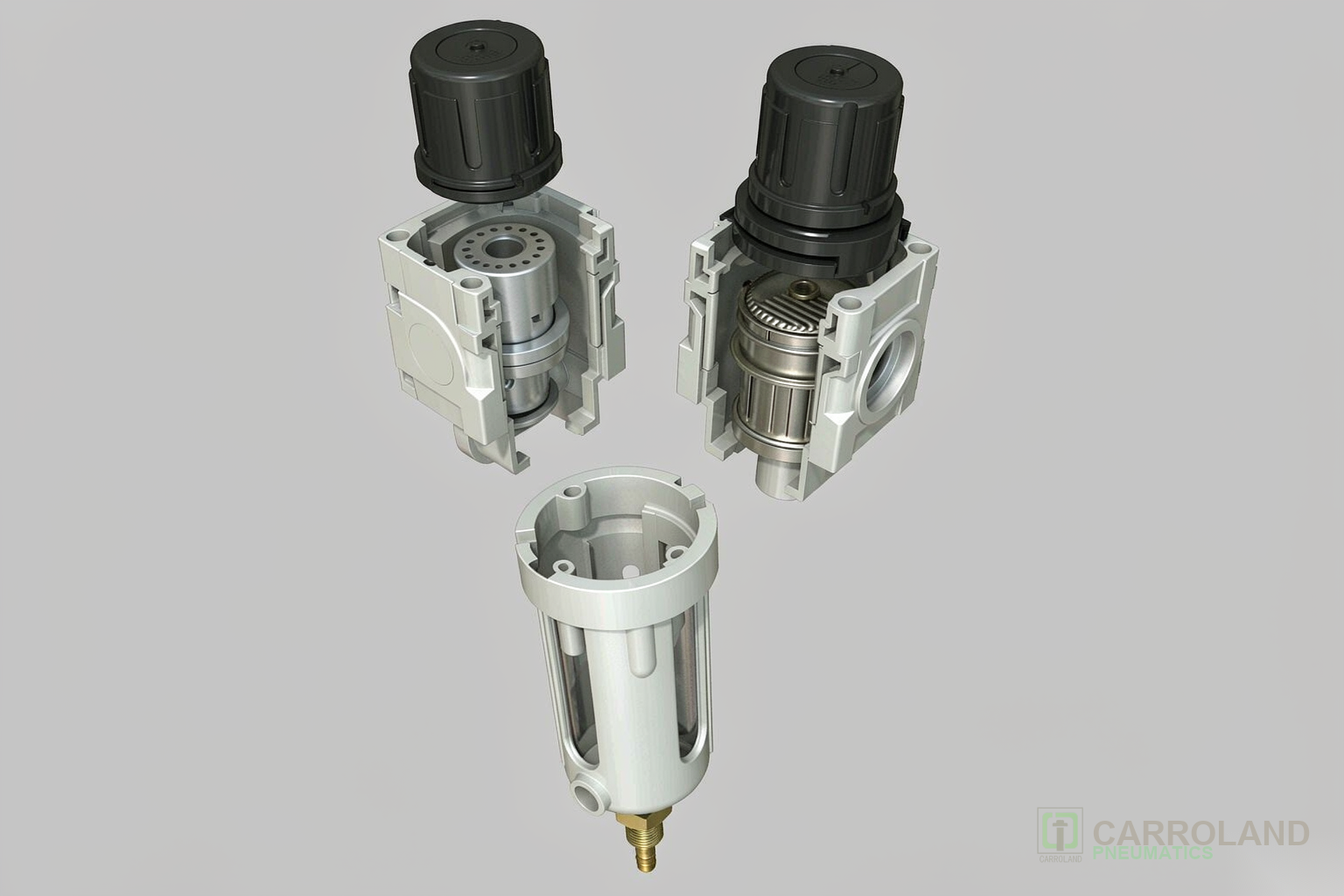

What Each Stage Does
- Filter (F) — removes particulates and moisture; coalescing elements protect sensitive valves and instruments.
- Regulator (R) — holds a stable downstream pressure so actuator force stays consistent.
- Lubricator (L) — adds controlled oil mist for air-tool and older cylinder longevity (often omitted for modern self-lubricating seals).
Sizing and Selection
- Match port size and flow (Cv) to the total downstream demand.
- Set the regulator range above the highest actuator pressure you use.
- Choose filter rating (e.g., 5 µm general, 0.01 µm coalescing for instruments).
- Confirm bowl material and drain type (manual, semi-auto, or auto) for the environment.
- Plan maintenance access for element replacement.
Maintenance Tips for Indian Conditions
High humidity and dust load mean shorter filter-element intervals. Inspect bowls and drains regularly, and protect electronics with a coalescing stage. Pair the FRL with validated solenoid valves and cylinders.
India Compliance
Carroland is a China-based exporter and does not hold BIS, DPIIT, CE, RoHS, or ISO 14001 certifications. It supplies IS/ISO conformance and test reports so the Indian importer can self-certify BIS via FMCS + AIR. See the BIS/PLI import guide for sourcing context.
Related Resources
- FRL air preparation (India)
- Solenoid valve and directional control (India)
- Pneumatic cylinder guide (India)
- Pneumatic systems for 3C automation (India)
- BIS, PLI & import compliance (India)
Frequently Asked Questions
Do I always need a lubricator?
Not always. Modern self-lubricating seals often run unlubricated; a lubricator is useful for air tools and older cylinders. Many clean automation lines omit it.
What filter rating should I use?
Use about 5 µm for general protection and a 0.01 µm coalescing element upstream of instruments or sensitive valves to remove oil mist and fine moisture.
How do I size an FRL?
Match the port size and Cv flow to total downstream demand, and set the regulator range above your highest working pressure.
Does Carroland hold BIS or CE?
No. Carroland does not hold BIS, CE, RoHS, or ISO 14001. Indian customers self-certify BIS where required using supplied IS/ISO conformance and test reports.
Is Carroland a Foxconn-certified supplier?
Yes. Carroland is a Foxconn-certified supplier for iPhone production-line pneumatic clamping components and applies the same process control to components shipped to India.
