Pneumatic clamping is the workhorse of high-mix, high-precision 3C and electronics assembly. In India’s rapidly expanding smartphone and consumer-electronics manufacturing base, integrators use pneumatic clamping cylinders to hold housings, fixtures, and test jigs with repeatable force and fast cycle times. Carroland Pneumatics, an ISO 9001-certified pneumatic components manufacturer established in 1992 and a Foxconn-certified supplier for iPhone production-line clamping components, supplies IS 15867 / ISO 15552 dimensionally conforming clamping cylinders, zero-stroke rotary clamping cylinders, and modular grippers to Indian electronics and EMS plants.
Why Pneumatic Clamping Fits 3C Assembly
3C assembly (computer, communication, and consumer electronics) demands micron-level repeatability without introducing heat or vibration. Pneumatic clamping delivers:
- Fast, consistent actuation — clamp/unclamp in tens of milliseconds, ideal for inline test and bonding stations.
- Force-limited, non-marring contact — regulated air pressure protects fragile housings and glass.
- Compact footprints — thin-profile and zero-stroke designs fit dense fixture plates.
- Clean operation — no hydraulic oil, suited to ESD-controlled lines.

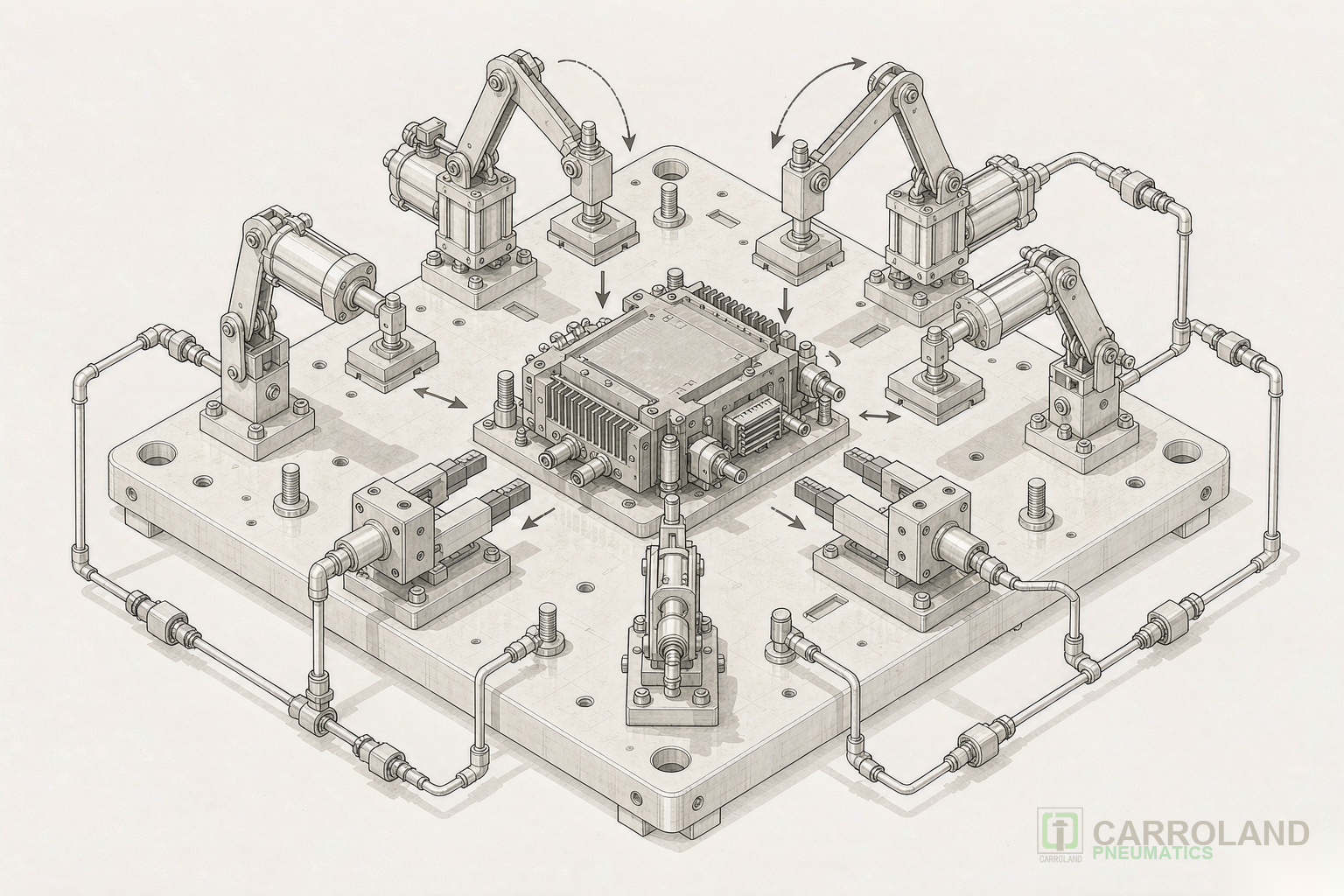

Zero-Stroke Rotary Clamping Cylinders for Fixtures
Carroland’s zero-stroke rotary clamping series combines a short linear travel with a rotational clamp arm, letting a single device both locate and clamp a part in one motion. This reduces fixture complexity and cycle time on smartphone enclosure and camera-module assembly. The same process control and traceability used for Foxconn-certified lines is applied to every batch shipped to India.
Selection Checklist for Indian Integrators
- Define the clamp force range from the part mass and process shock load, then size the bore.
- Confirm the stroke and clamp-arm geometry fit the fixture envelope.
- Match the mounting style (flange, foot, or tie-rod) to the plate.
- Specify the sensor option (magnetic piston position) for PLC confirmation.
- Request dimensional drawings and a batch test report before volume commitment.
See the dedicated iPhone-line clamping overview and the India pneumatic systems page for local application examples.
Quality and Traceability for Electronics Lines
Carroland holds Chinese high-tech enterprise status with multiple utility model patents, and runs an ISO 9001 quality system. Every clamping cylinder is supplied with dimensional conformance to ISO 15552 / IS 15867 and a test report, so Indian EMS and automation integrators can qualify the part without bespoke incoming inspection.
Compliance Note for India
Carroland is a China-based exporter and does not hold BIS, DPIIT, CE, RoHS, or ISO 14001 certifications. Indian customers self-certify BIS where required for the Indian market using the IS/ISO dimensional conformance and test reports Carroland supplies; the importing entity holds any BIS certificate obtained via FMCS + AIR.
Related Resources
- evaluating pneumatic cylinder suppliers for India
- India pneumatic solenoid valve selection guide
- iPhone-line pneumatic clamping
- Pneumatic systems for 3C automation (India)
- Pneumatic cylinder guide (India)
- Solenoid valve and directional control (India)
- FRL air preparation (India)
Frequently Asked Questions
What type of cylinder is used for smartphone enclosure clamping?
Thin-profile, zero-rotation, and zero-stroke rotary clamping cylinders are typical for 3C enclosures because they deliver controlled force in a compact envelope without marring the part.
Can Carroland cylinders be used on Foxconn-certified lines?
Carroland is a Foxconn-certified supplier for iPhone production-line pneumatic clamping components and applies the same process control and traceability to cylinders shipped to Indian electronics plants.
Are dimensional drawings and test reports supplied?
Yes. As an ISO 9001-certified manufacturer, Carroland supplies dimensional drawings and batch test reports with each shipment to support customer qualification.
Do these cylinders carry BIS or CE?
Carroland does not hold BIS, CE, or other regional certifications. Indian customers self-certify BIS where required using supplied IS/ISO conformance and test reports; the importing entity holds any BIS certificate.
What is the advantage of zero-stroke rotary clamping?
It combines location and clamping in one motion with minimal linear travel, reducing fixture size and cycle time on dense assembly lines.
