Push to Connect Pneumatic Fittings: Complete Selection Guide 2026

Push to connect pneumatic fittings form the backbone of every compressed air distribution system on the factory floor. These one-touch connectors eliminate threaded assembly on thermoplastic tubing, cutting circuit build time by up to 40% compared to compression fittings. For automation engineers specifying air line connections across hundreds of cylinder and valve ports, getting fitting selection right means the difference between a system that holds 6 bar for a decade and one that bleeds compressed air through micro-leaks at every joint. This guide covers thread standards, material grades, sealing physics, and the selection checklist that determines whether your pneumatic air line connectors survive 1,000,000 cycles or fail at 100,000.

How Push-to-Connect Fittings Work: Internal Mechanics

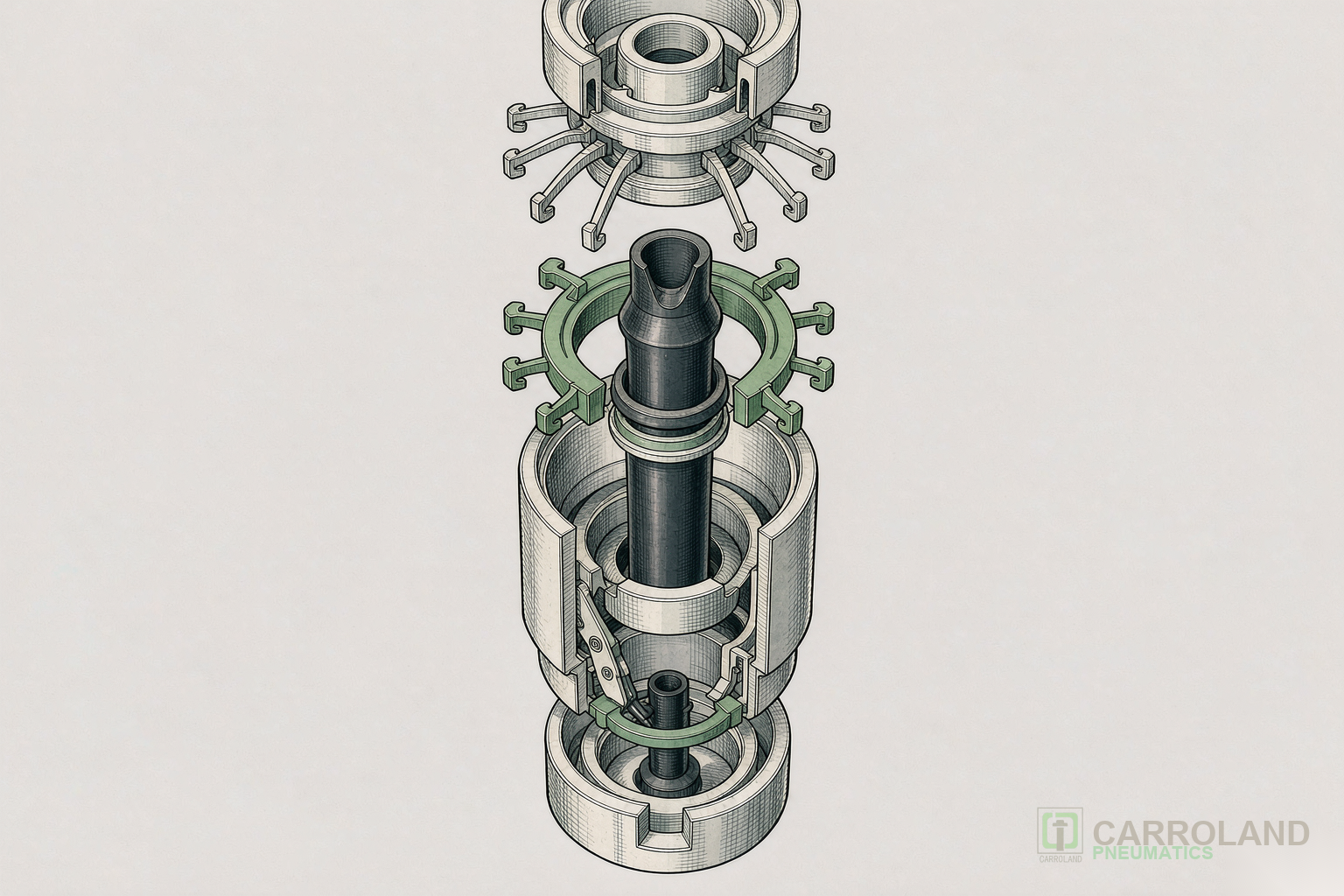

The push-in fitting achieves both mechanical retention and pneumatic sealing through a three-component architecture standardized under ISO 14743. When a technician pushes polyurethane (PU) or polyamide (PA) tubing past the release collar, a stainless steel grab ring – machined with inward-facing teeth angled at approximately 15 degrees – bites into the tube outer diameter. Simultaneously, a nitrile rubber (NBR) O-ring with a durometer of 70 ± 5 Shore A compresses radially against the tube wall, forming the primary seal.

The grab ring works on a one-way wedge principle: forward pressure from system air pushes the ring deeper into its tapered housing, increasing grip force proportionally to line pressure. This self-energizing mechanism means the fitting actually grips harder at 10 bar than at 1 bar. Release requires pressing the collet collar to disengage the teeth, allowing the tube to be pulled free – no tools needed, which is why field technicians favor push-in fittings for high-maintenance automation cells.

graph TD
    A[Compressed Air Supply 6-10 bar] --> B[FRL Unit - ISO 8573-1 Class 4]
    B --> C[Distribution Manifold]
    C --> D[Push-to-Connect Fitting]
    D --> E{Connection Type}
    E -->|Straight| F[Cylinder Port Direct]
    E -->|Elbow 90°| G[Tight Space Routing]
    E -->|Tee| H[Circuit Branching]
    E -->|Bulkhead| I[Panel Feed-Through]
    F --> J[Pneumatic Actuator]
    G --> J
    H --> J
    I --> J

Tube preparation matters more than fitting brand. A tube cut that deviates from 90 degrees by more than 2 degrees creates an asymmetric seal – the O-ring compresses fully on one side while leaving a micro-gap on the other. Engineers on automated production lines specify tube cutters with hardened steel blades, not utility knives, because a scratched tube OD of more than 0.1 mm depth creates a leakage path that bypasses the NBR seal entirely. Testing at 0.6 MPa shows that a single poorly cut tube end can raise leak rate from under 10 sccm to over 500 sccm, enough to drop line pressure by 0.3 bar at the actuator.

Thread Standards: NPT, BSPP, and BSPT — Getting the Interface Right

The single most common root cause of pneumatic fitting failure is thread mismatch. Three thread standards dominate global industrial automation, and they are mechanically incompatible: forcing an NPT male into a BSPP female port will thread in for approximately two turns before binding, creating an interference fit that fails under thermal cycling.

Field diagnostic rule: If the thread diameter stays constant from tip to shoulder, the port is parallel (BSPP/G). If it visibly narrows toward the tip, it is tapered (NPT or BSPT). A 1/4″ pitch gauge resolves the NPT vs. BSP ambiguity immediately – 18 TPI means NPT, 19 TPI means BSP. This one-thread-per-inch difference is why “close enough” costs factories thousands in compressed air leakage annually.

For new machine builds, we specify BSPP (G-thread) ports with O-ring face seals wherever possible. The parallel thread geometry eliminates the risk of port cracking from over-torquing tapered threads, and the elastomeric seal handles vibration across the 10 Hz to 500 Hz range typical of industrial automation equipment far better than PTFE tape, which cold-flows under sustained vibration and eventually loosens. Torque values for common sizes: G1/8 at 8 N·m, G1/4 at 15 N·m, G3/8 at 25 N·m, G1/2 at 35 N·m.

Material Selection: PBT Polymer vs. Nickel-Plated Brass vs. Stainless Steel

Push to connect pneumatic fittings are manufactured in three primary body materials, each with distinct pressure-temperature envelopes and cost profiles. The selection maps directly to the operating environment, not to any brand preference.

PBT polymer bodies dominate general-purpose compressed air circuits in electronics assembly, packaging, and light automation. The glass-fiber-reinforced polybutylene terephthalate offers adequate mechanical strength at standard shop air pressures while keeping unit cost low. The limitation is thermal: above 60°C, PBT begins to soften, reducing grab-ring retention force and potentially causing tube ejection under pressure spikes.

Nickel-plated brass provides the sweet spot for most industrial automation. The electroless nickel plating – typically 5-8 μm thickness – protects the brass substrate from dezincification in humid compressed air while adding surface hardness that resists thread galling during repeated assembly and disassembly. For pneumatic fitting suppliers serving automotive body shops and CNC machining centers, brass fittings represent approximately 60% of volume because they tolerate the incidental cutting fluid mist and moderate vibration that would degrade PBT within months.

Stainless steel 316L fittings serve niche but critical roles: food and beverage processing (FDA-compliant, CIP/SIP compatible), pharmaceutical cleanrooms, offshore and marine environments, and any application where chemical corrosion resistance is non-negotiable. The 8-12× cost multiple over PBT means these are specified only when the environment demands it – typically fewer than 5% of fittings on a standard automated line.

Seal Material: NBR vs. FKM

The default seal material in push-to-connect fittings is NBR (nitrile butadiene rubber) at 70 Shore A, rated for -20°C to +80°C with compressed air. For applications exceeding 80°C or involving aggressive media, upgrade to FKM (fluoroelastomer) seals, which extend the temperature ceiling to +150°C and resist swelling from synthetic compressor oils and trace hydrocarbons that degrade NBR over 5,000-10,000 operating hours. The cost adder for FKM is approximately 1.5-2× over NBR, but the operational benefit in high-temperature or chemically aggressive environments outweighs the premium through reduced maintenance intervals.

Selection Checklist: 7 Parameters That Determine Fitting Performance

When sourcing pneumatic air line connectors for a new machine build or retrofit, engineers evaluate seven parameters in sequence. Missing any one of these leads to a mismatch that manifests as a leak, a pressure drop, or an outright blow-off under load.

1. Tube OD and tolerance. Measure with a digital caliper to ±0.05 mm. A 6 mm tube and a 1/4″ (6.35 mm) tube look identical but are mechanically incompatible – inserting the wrong size damages the O-ring on the first insertion. ISO 4397 defines standard metric ODs: 4, 6, 8, 10, 12, 16 mm.
2. Thread type and size. Identify the manifold port thread using a pitch gauge. Never guess – mixed NPT/BSP interfaces account for roughly 30% of field leak investigations according to service data from automation integrators.
3. Working pressure and safety factor. Standard push-in fittings are rated to 1.0 MPa with a 4:1 safety factor (burst at 4.0 MPa). If the application involves pressure spikes above nominal – common in cylinder exhaust circuits – specify fittings with a 1.5 MPa working rating.
4. Temperature envelope. Match both the fitting body material and the seal material to the maximum and minimum operating temperatures. PBT + NBR works for standard shop air (5-50°C). Brass + FKM is required for anything approaching 80°C continuous.
5. Flow coefficient (Cv). For a 6 mm push-in fitting, typical Cv ranges from 0.2 to 0.8 depending on internal bore geometry. The fitting’s Cv must equal or exceed the calculated requirement for the connected actuator, or the fitting becomes the flow bottleneck, causing cylinder speed reduction of 15-30%.
6. Chemical compatibility. Consider not just the primary media (compressed air) but contaminants: compressor oil carryover, cutting fluid mist, washdown chemicals. NBR swells and loses elasticity when exposed to synthetic ester-based compressor oils. FKM or EPDM seals address this.
7. Cycle life requirement. Push-to-connect fittings tested per ISO 19973-5 must withstand a minimum of 1,000,000 pressure cycles without leakage exceeding 10 sccm at 0.6 MPa. For high-cycle pick-and-place cells cycling at 2 Hz, that translates to approximately 140 operating hours – within a single week of three-shift production. Specify accordingly.

Industry Applications: Where Fitting Selection Determines Line Uptime

Automated Assembly Lines

A typical automotive assembly station with 12 pneumatic cylinders carries 24 push-in fittings – two per cylinder at the supply and exhaust ports. If each fitting has a 0.1% probability of developing a leak per shift, the station sees a leak roughly once every 40 shifts. Scale that to a factory with 200 stations and the math becomes clear: fitting quality is a direct multiplier on maintenance labor cost. Engineers on high-volume lines specify nickel-plated brass bodies with FKM seals specifically to push mean time between fitting-related failures beyond 5,000 operating hours.

Electronics and 3C Manufacturing

Cleanliness requirements in electronics assembly drive fitting selection toward PBT polymer bodies – no metallic particles, no oxidation flakes, no copper ion contamination that could short PCB traces. The operating environment is benign (filtered compressed air at 4-6 bar, 20-30°C ambient) so PBT’s thermal limitations are irrelevant. What matters is consistency: tube OD tolerance within ±0.05 mm and grab-ring tooth geometry that does not score the PU tubing surface, which would generate particulate contamination over millions of insertion cycles in pick-and-place end-effectors.

Food Processing and Packaging

Washdown environments invert normal fitting selection logic. The priority is not grip force or cycle life – it is corrosion resistance and seal material compatibility with cleaning chemicals. Stainless steel 316L bodies with EPDM or FKM seals are mandatory for direct food contact zones per FDA 21 CFR. For packaging areas without direct contact, nickel-plated brass with FKM seals provides adequate chemical resistance at roughly one-third the cost of stainless. A secondary consideration: push-in fittings in food plants must be designed for rapid disassembly during sanitation shifts, which makes the tool-free disconnect feature operationally critical.

Leak Prevention: Common Failure Modes and Field Fixes

Compressed air leakage accounts for 20-30% of industrial compressed air energy consumption according to the U.S. Department of Energy’s compressed air challenge data. Push-in fittings are a significant contributor when improperly specified or installed. Three failure modes dominate field service reports:

Tube-walk under vibration. In high-speed automation equipment where vibration ranges from 10 Hz to 500 Hz, the micro-oscillation between the tube OD and the grab ring teeth gradually abrades the polymer surface. Once abrasion depth exceeds 0.15 mm, the O-ring loses compression and a leak develops. The fix is mechanical support: a cable tie or tube clamp placed within 50 mm of the fitting eliminates the whip effect that drives tube-walk. Adding a short straight relief section before any 90-degree elbow also reduces side-load on the seal.

Angled or burred tube cuts. A tube end cut at even 5 degrees off-square creates an asymmetric O-ring compression profile. At 0.6 MPa, this asymmetry produces a leak path of 50-200 sccm that may not be audible but drains 5-15% of the circuit’s flow capacity. Using a purpose-built tube cutter (guillotine type, not scissors) and deburring with a chamfer tool eliminates this failure mode entirely.

Thread seal degradation. On tapered threads, PTFE tape cold-flows under sustained vibration. The standard 0.075-0.1 mm tape thickness compresses to under 0.03 mm after approximately 50,000 vibration cycles at 20 Hz, at which point leak rate rises above 10 sccm. Pre-coated thread sealants (acrylic-based, factory-applied) maintain seal integrity through 500,000+ cycles, which is why they are increasingly specified for vibration-intensive automation applications.

Frequently Asked Questions

Q: How do push-to-connect fittings compare to compression fittings for industrial automation?

Push-to-connect fittings reduce assembly time by approximately 40% versus compression fittings because they require no wrenches, no ferrule swaging, and no torque verification. The trade-off is pressure rating: compression fittings handle 20-60 bar in standard configurations, while push-in fittings are typically limited to 10-15 bar. For the 6-10 bar range that covers 90% of factory pneumatics, push-in fittings provide adequate pressure margins and superior serviceability. Compression fittings remain the standard for high-pressure instrumentation and hydraulic-pneumatic interface points.

Q: What tube materials work with push-in pneumatic fittings?

Standard push-in fittings are engineered for semi-rigid thermoplastic tubing: polyurethane (PU) at 85-95 Shore A hardness and polyamide (PA/Nylon) at 70-75 Shore D. PU tubing dominates general industrial use because its elasticity allows the grab ring to achieve full tooth penetration without scoring the surface. PA tubing, being harder, requires fittings with a higher-tensile grab ring to prevent tube-walk under pressure cycling. Soft silicone or PVC tubing is incompatible – the grab ring cannot achieve sufficient grip force on materials below 80 Shore A, and the tube may blow out under pressure. Always verify compatibility with your pneumatic fitting suppliers before specifying non-standard tubing.

Q: How do I detect and quantify leaks at pneumatic fittings?

The field-standard method is a soap solution (5% dish soap in water) applied to each fitting while the system is at operating pressure – bubble formation indicates leak rate above approximately 5 sccm. For quantitative measurement, an ultrasonic leak detector calibrated to 40 kHz captures the high-frequency hiss of compressed air escaping through a sub-millimeter gap, with sensitivity down to 1 sccm at 0.6 MPa. In production environments, a weekly walk-down inspection with an ultrasonic detector typically catches fitting degradation 2-4 weeks before it causes a pressure drop significant enough to trigger a machine fault. For ISO 8573-1 compliant systems, the acceptance criterion is typically less than 10 sccm per fitting at nominal operating pressure.
