JSCR(L) Series Rotary Clamping Cylinders

Name: JSCR(L) Series Rotary Clamping Cylinders
Brand: Carroland

JSCR(L) Series Rotary Clamping Cylinders for industrial production automation.

Select model

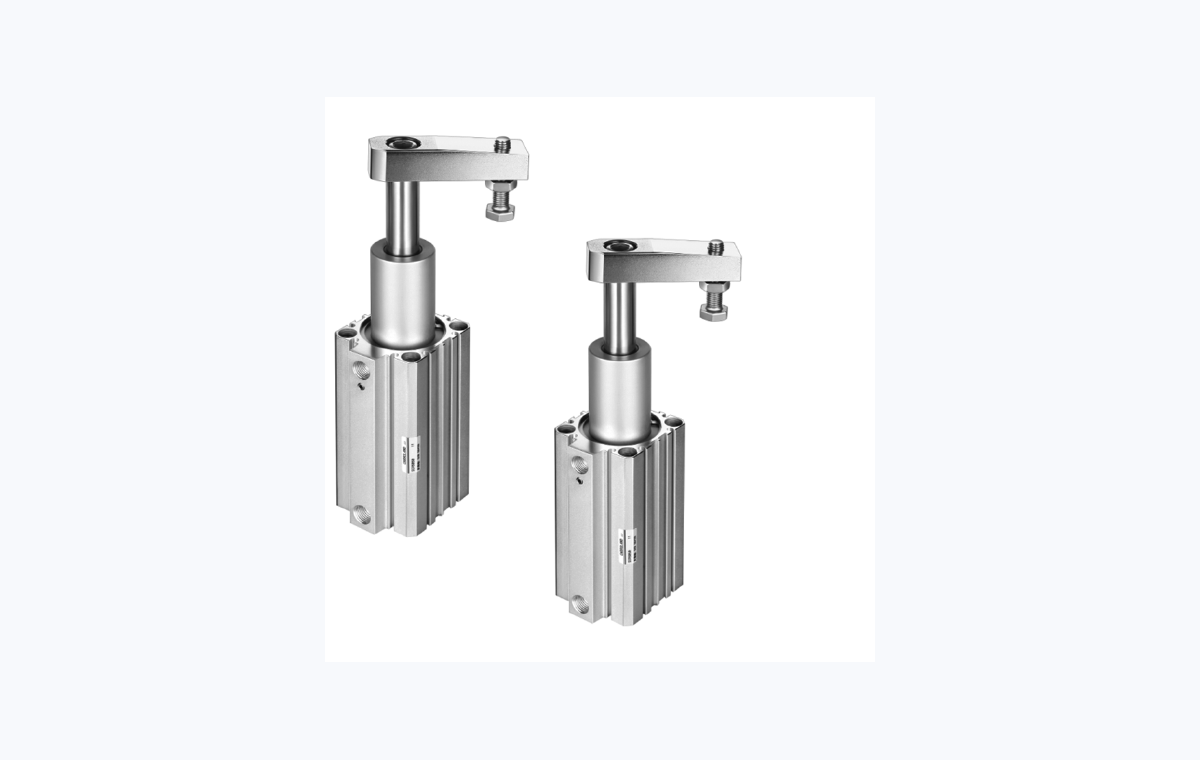

JSCR Right Rotary Clamping Cylinder

Right-hand rotary clamping cylinder with 90 degree rotation.

Bore Diameter16, 20, 25, 32, 40, 50, 63 mm

StrokeDownstroke: 10, 20 mm for 16-40 mm; 25, 50 mm for 50-63 mm

Operation ModeDouble acting, right rotary clamping

Working MediumAir

Request a Quote Consult Engineers

Bore Diameter	16, 20, 25, 32, 40, 50, 63 mm
Stroke	Downstroke: 10, 20 mm for 16-40 mm; 25, 50 mm for 50-63 mm
Operation Mode	Double acting, right rotary clamping
Working Medium	Air
Operating Pressure Range	1.5-9.5 kgf/cm2
Operating Temperature Range	0-60 C
