Industrial Pneumatic Components · JJTD Series Guided Fixture Cylinders

JJTD Series Guided Fixture Cylinders

JJTD Series Guided Fixture Cylinders for industrial production automation.

Mode A · Single SeriesOne base model with selectable sizes / variants.

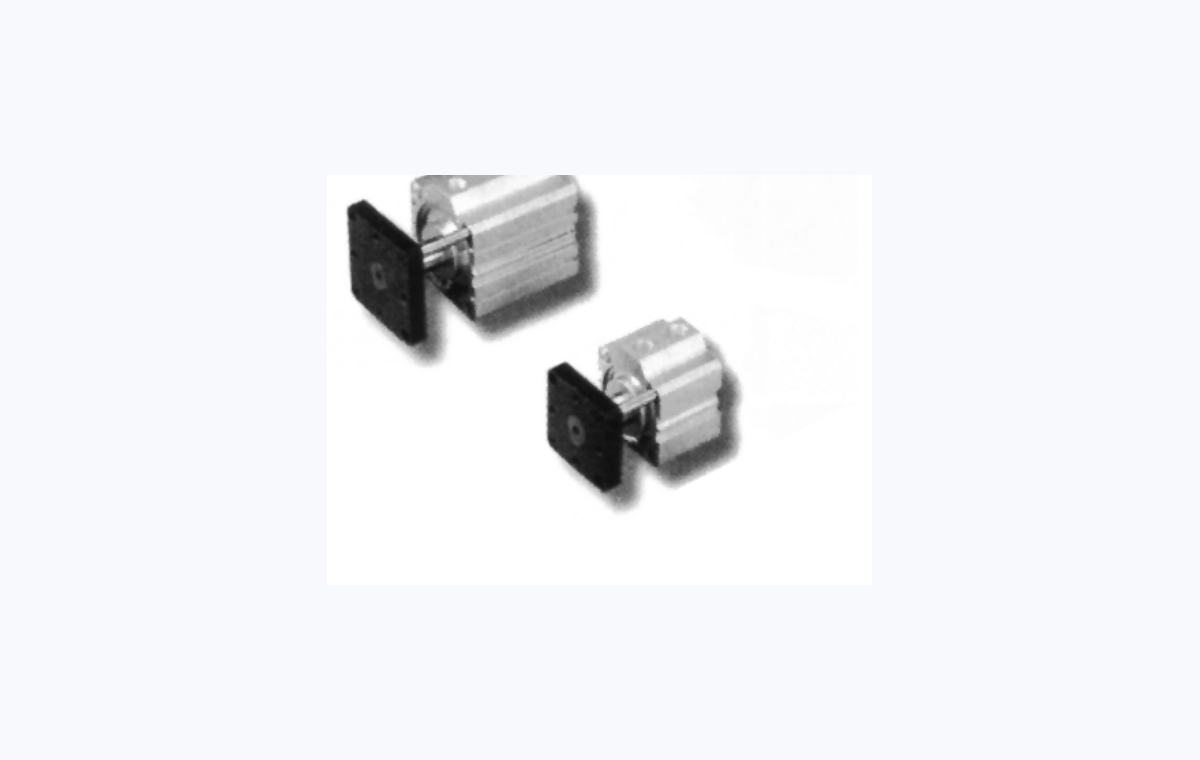

JJTD Guided Fixture Cylinder — Carroland Pneumatics
Select model
JJTD Series Guided Fixture Cylinders

JJTD Guided Fixture Cylinder

Guided fixture cylinder with a compact slide structure for automation fixtures.

Bore Diameter20, 25, 32, 40, 50, 63 mm
Stroke10-100 mm, depending on bore
Operation ModeDouble acting, guided slide
Operating Pressure Range0.1-0.9 MPa
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter20, 25, 32, 40, 50, 63 mm
Stroke10-100 mm, depending on bore
Operation ModeDouble acting, guided slide
Operating Pressure Range0.1-0.9 MPa
