Industrial Pneumatic Components · JHDZ Series Rail-Guided Parallel Grippers

JHDZ Series Rail-Guided Parallel Grippers

JHDZ Series Rail-Guided Parallel Grippers for industrial production automation.

Mode A · Single SeriesOne base model with selectable sizes / variants.

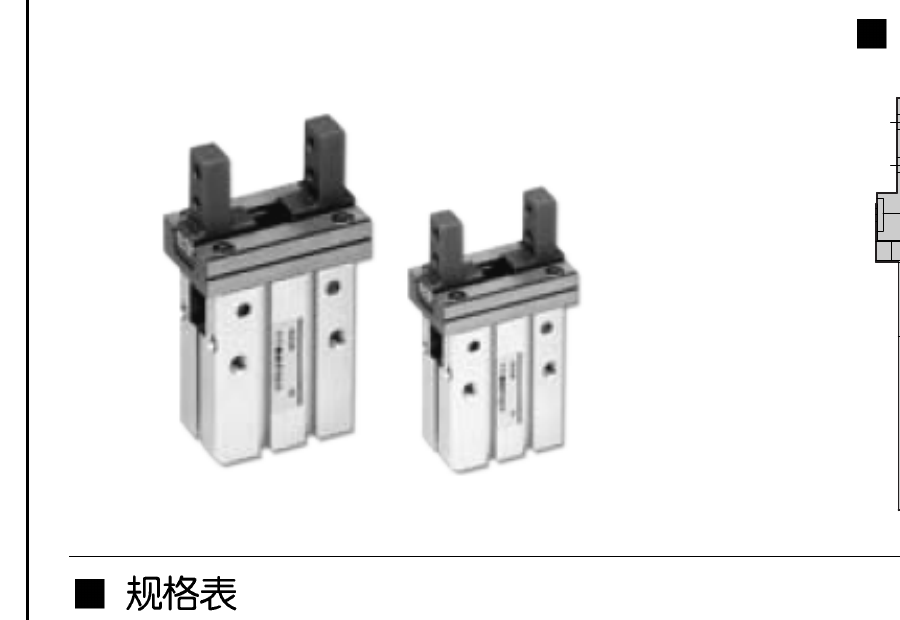

JHDZ Rail-Guided Parallel Mechanical Gripper — Carroland Pneumatics
Select model
JHDZ Series Rail-Guided Parallel Grippers

JHDZ Rail-Guided Parallel Mechanical Gripper

Double-acting rail-guided parallel mechanical gripper for precise handling.

Bore Diameter10, 16, 20, 25, 32, 40 mm
StrokeJaw travel: 4, 6, 10, 14, 30, 22 mm by bore
Operation ModeDouble acting, rail-guided parallel
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter10, 16, 20, 25, 32, 40 mm
StrokeJaw travel: 4, 6, 10, 14, 30, 22 mm by bore
Operation ModeDouble acting, rail-guided parallel
Working MediumAir
Operating Pressure Range2-7 kgf/cm2 (200-700 kPa) for 10-16 mm; 1-7 kgf/cm2 (100-700 kPa) for 20-40 mm
Operating Temperature Range0-60 C
