Industrial Pneumatic Components · JHDS and JHRS Series Y-Type Mechanical Grippers

JHDS and JHRS Series Y-Type Mechanical Grippers

JHDS and JHRS Series Y-Type Mechanical Grippers for industrial production automation.

Mode A · Single SeriesOne base model with selectable sizes / variants.

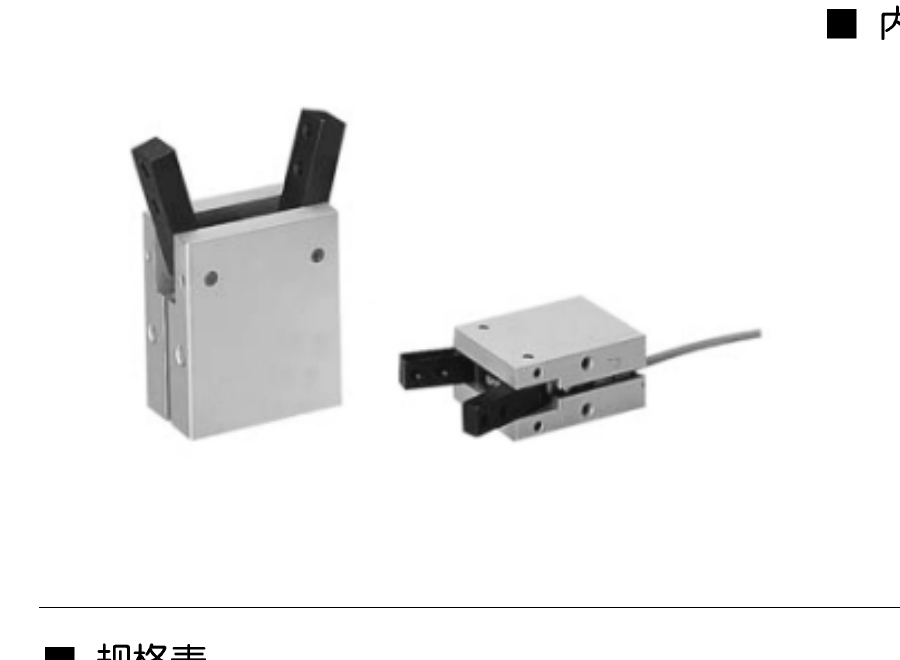

JHDS Y-Type Mechanical Gripper — Carroland Pneumatics
Select model
JHDS and JHRS Series Y-Type Mechanical Grippers

JHDS Y-Type Mechanical Gripper

Double-acting Y-type mechanical gripper for compact pneumatic handling.

Bore Diameter10, 16, 20, 25, 32 mm
StrokeJaw open/close angle: -10 to +30 degrees
Operation ModeDouble acting, Y-type
Working MediumAir
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter10, 16, 20, 25, 32 mm
StrokeJaw open/close angle: -10 to +30 degrees
Operation ModeDouble acting, Y-type
Working MediumAir
Operating Pressure Range1.5-7 kgf/cm2 (150-700 kPa)
Operating Temperature Range0-60 C
