Industrial Pneumatic Components ยท JSC Series Tie-Rod Cylinders

JSC Series Tie-Rod Cylinders

JSC Series Tie-Rod Cylinders for industrial production automation.

Mode A ยท Single SeriesOne base model with selectable sizes / variants.

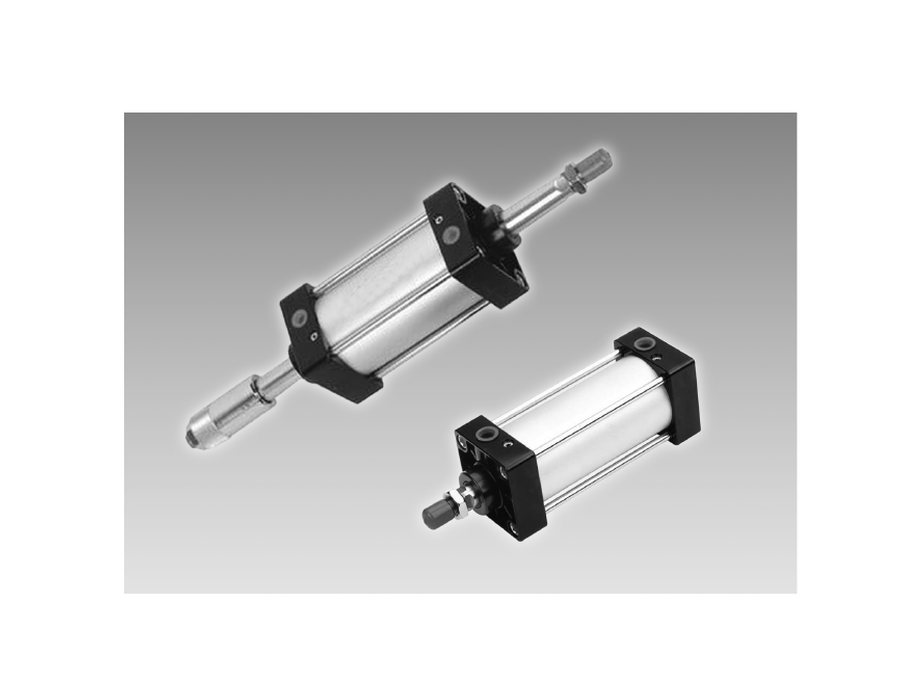

JSC Tie-Rod Cylinder โ€” Carroland Pneumatics
Select model
JSC Series Tie-Rod Cylinders

JSC Tie-Rod Cylinder

Double-acting tie-rod pneumatic cylinder with adjustable cushioning.

Bore Diameter32-100 mm
Stroke25-1000 mm standard; up to 2000 mm permissible
Operation ModeDouble acting
Proof Pressure1.35 MPa
Request a Quote Consult Engineers

Technical Specifications

Bore Diameter32-100 mm
Stroke25-1000 mm standard; up to 2000 mm permissible
Operation ModeDouble acting
Proof Pressure1.35 MPa
Working MediumAir
Operating Pressure Range0.1-0.9 MPa
Operating Temperature Range-5 to 70 C
Cushion TypeAdjustable cushioning
